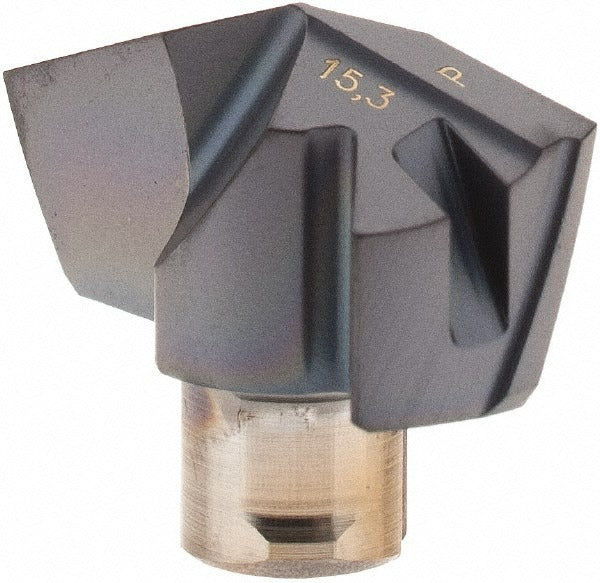

Iscar 5508448 Carbide Replaceable Tip Drill 0.602 in Icp

Product Description

The ISCAR 5508448 is a solid carbide replaceable tip drill in the ICP series, designed for precision hole-making in demanding metalworking applications. The drill tip carries the IC908 grade designation, produced from a submicron carbide substrate and coated with TiAlN via a PVD process. The cutting diameter is 0.602 inches, the included drill point angle is 140 degrees, and the tip features a thinned web geometry with a honed cutting edge. The slow spiral, two-flute configuration controls chip evacuation during interrupted and continuous cuts. This insert is installed by a licensed machinist or CNC tooling technician as a drop-in replaceable tip in compatible ICP-series drill bodies.

The 5508448 tip is suited for drilling steel as its primary workpiece material, with secondary ratings covering stainless steel, cast iron, super-alloys, titanium, and hard materials. The ISO material codes covered are P, M, K, S, and H, making this tip appropriate for a broad range of production drilling scenarios in job shops, aerospace, and heavy manufacturing environments. The ICP series uses a twist-style insert holding method that allows rapid tip changes without removing the drill body from the spindle, reducing downtime in high-volume operations. The tip conforms to ISO 13399 tooling data standards.

Key Features

• IC908 submicron solid carbide substrate with PVD-applied TiAlN coating for extended wear resistance in steel and stainless steel
• 140-degree included drill point angle with thinned web for reduced thrust force at entry
• Honed cutting edge geometry (style P) minimizes chipping on difficult-to-machine alloys
• Slow spiral, two-flute configuration aids chip flow in deep-hole and interrupted-cut applications
• ISO 13399 compliant tooling data for integration with CAM and tool management software
• Replaceable tip design reduces tooling cost per hole compared to solid-shank drills

Compatibility

Designed for use with compatible ISCAR ICP-series drill bodies that accept an ISO Number ICP 153 tip with an insert seat size of 15. Verify body seat size and ISO number match before ordering.

Installation Notes

Installation and tip changes should be performed by a qualified machinist or CNC tooling technician. Disengage the spindle and isolate machine power before removing or seating the replaceable tip. Use the manufacturer-specified torque tool for the twist-lock interface - do not use impact drivers or improvised tools that could damage the seating surface. Inspect the drill body pocket for wear, debris, or damage each time the tip is changed to ensure proper seating and runout.
