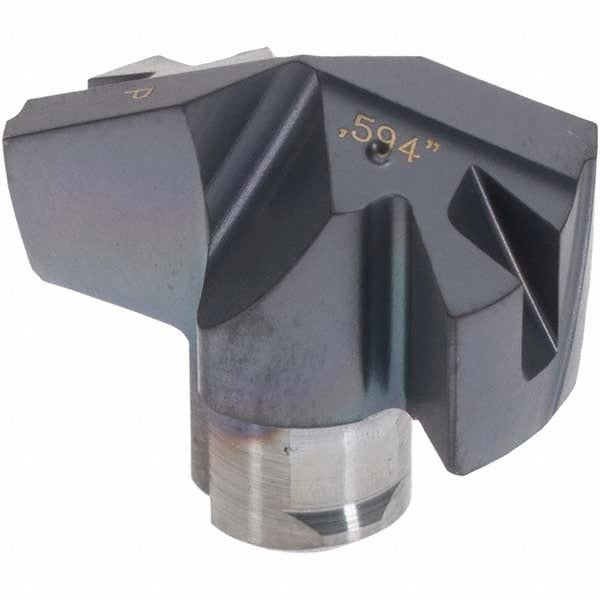

Iscar 5508446 Replaceable Drill Tip 19/32 in Carbide IC908

Product Description

The ISCAR 5508446 is a replaceable drill tip designed for indexable drilling systems in demanding metal-cutting applications. Manufactured from solid carbide in the IC908 submicron grade with a TiAlN coating applied via PVD process, this tip delivers consistent cutting performance in steel and a range of secondary workpiece materials. The cutting diameter measures 19/32 inches (0.5940 inches / 15.09 mm), with a 140-degree drill point angle and a standard point type. Two helical flutes and a web-thinned geometry reduce entry forces and improve chip evacuation. It seats into an insert seat size 15 and is held in place by a clamp-style holding method.

This drill tip is suited for hole making, chamfering, and drilling operations in industrial machining environments. Primary workpiece material is steel, with rated capability across stainless steel, cast iron, superalloys, titanium, and hard materials. The ICP series tip follows ISO 13399 standards and carries the ISO number ICP 151. It is installed by machinists and toolroom technicians working with modular indexable drill bodies that accept ICP-style replaceable tips. Coolant-through capability is not supported by this tip.

Key Features

• Solid carbide IC908 submicron grade for wear resistance in steel and hard materials
• TiAlN coating via PVD process for thermal protection and extended tool life
• 140-degree drill point angle with standard point geometry for clean entry
• Web-thinned design reduces thrust force and aids chip flow
• Two helical flutes with regular spiral for consistent chip evacuation
• Compliant with ISO 13399 tooling data standards

Compatibility

Designed as an ICP-series replaceable drill tip for indexable drill bodies that accept insert seat size 15 and use a clamp-style holding method, per ICP 151 ISO designation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before seating or removing the drill tip. Use the appropriate torque wrench and clamp screw per the drill body manufacturer specifications — do not overtighten by hand. Inspect the insert seat for chips or debris before seating the tip to ensure proper contact and runout.
