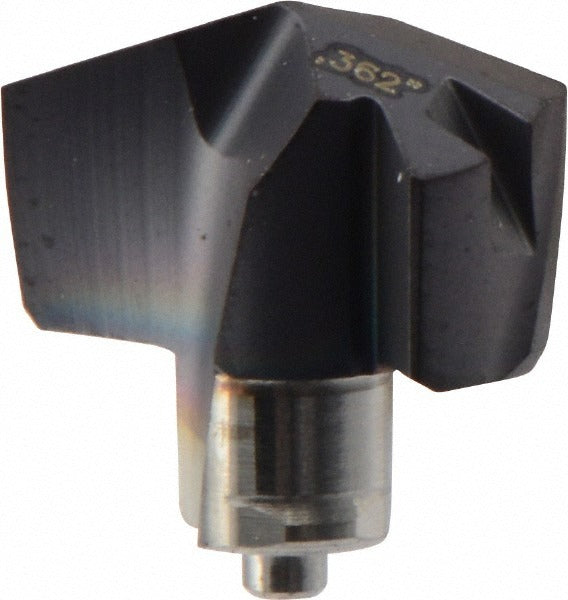

Iscar 5508334 Carbide Replaceable Tip Drill 0.362 in Icp

Product Description

The ISCAR 5508334 is a solid carbide replaceable tip drill insert designed for high-performance drilling in metal cutting applications. It carries the IC908 grade designation, a submicron carbide substrate with a PVD-applied TiAlN coating that provides heat resistance and edge retention under demanding conditions. The cutting diameter is 0.362 inches, the included drill point angle is 140 degrees, and the tip height is 0.228 inches. The cutting edge is honed, and the point is web-thinned to reduce entry thrust. This insert is used by machinists and tool and die professionals working in production drilling environments.

This replaceable tip is suited for drilling steel as its primary workpiece material. It is also rated for secondary materials including stainless steel, cast iron, super-alloys, titanium, and hard materials. The insert fits the ICP Series drill body, specifically the ICP seat size 9 configuration. It features a slow spiral flute geometry with two flutes and a twist-type insert holding method. The ISO number for this tip is ICP 092. Typical applications are production-run drilling operations on CNC machining centers and drill presses where insert changeability reduces downtime.

Key Features

• IC908 grade submicron carbide substrate with PVD TiAlN coating for extended tool life in steel and stainless steel
• 140-degree included drill point angle with web-thinned point reduces axial thrust at entry
• Honed cutting edge geometry (Style P insert geometry) for clean chip formation
• Slow spiral, two-flute configuration suited for chip evacuation in short-hole drilling
• Replaceable tip design fits ICP Series bodies, seat size 9
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with ISCAR ICP Series replaceable tip drill bodies accepting seat size 9 inserts, ISO number ICP 092. Consult the ICP Series body specifications to confirm correct seat size before ordering.

Installation Notes

Installation of replaceable tip drill inserts should be performed by a qualified machinist following the drill body manufacturer's assembly instructions. Ensure the drill body is fully de-energized and secured before tip removal or installation. Use the correct torque wrench or key as specified by the drill body documentation — do not overtighten or use improvised tools on the insert seat. Inspect the insert seat for wear or debris before seating a new tip to maintain runout accuracy.
