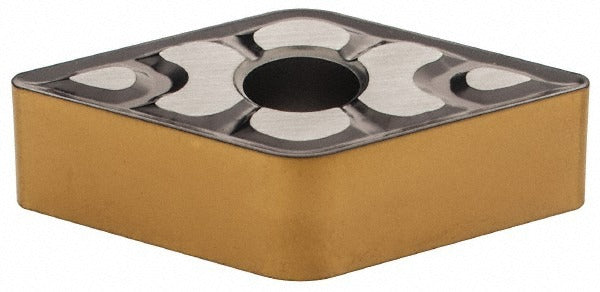

Iscar 5508235 DNMG150608TF IC807 Turning Insert

Product Description

The ISCAR 5508235 is a DNMG150608TF IC807 grade solid carbide turning insert designed for precision metal cutting on CNC lathes and turning centers. The insert carries a TiAlN coating applied via PVD process, delivering hardness and oxidation resistance suited for interrupted cuts and dry or semi-dry machining. The 55-degree diamond shape (DNMG style) provides two usable cutting edges. With a 0.5 inch inscribed circle, a 0.25 inch insert thickness, and a 1/32 inch corner radius, this insert suits medium to semi-finish turning passes. It is installed by licensed machinists and CNC operators in job shop and production environments.

This insert is part of the Isoturn series and is rated for primary workpiece materials classified under ISO material groups M, P, and S, covering stainless steels, carbon and alloy steels, and high-temperature superalloys. It fits standard DNMG toolholders using clamp-and-pin holding and is well suited to medium-feed finishing and semi-finishing passes at controlled depths of cut up to 3.50 mm (0.138 inch). The TF chip breaker geometry promotes efficient chip evacuation and reduced cutting forces in these material groups.

Key Features

• IC807 submicron solid carbide grade with PVD TiAlN coating for wear resistance
• 55-degree diamond insert shape (DNMG) with positive rake geometry for reduced cutting forces
• TF chip breaker for controlled chip formation in stainless, steel, and superalloy applications
• 1/32 inch corner radius suited to medium to semi-finish turning operations
• Maximum depth of cut: 3.50 mm (0.138 inch)
• Compliant with ISO 13399 cutting tool data representation standard

Compatibility

Designed as an OEM-style replacement and standard fit for DNMG toolholders using clamp-and-pin insert retention. Compatible with ISO material groups M, P, and S workpiece materials including stainless steels, carbon and alloy steels, and high-temperature superalloys.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before seating or indexing the insert. Use the correct torque driver for the clamp screw as specified by the toolholder manufacturer — do not overtighten, as this can crack the carbide insert. Inspect the insert pocket and seating surface for chips or debris before installation.
