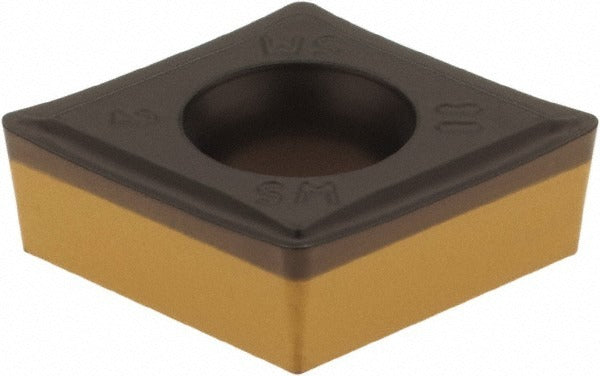

Iscar 5508093 CCMT432SM IC8250 Turning Insert Isoturn

Product Description

The ISCAR 5508093 is a CCMT432SM-geometry turning insert in the Isoturn series, manufactured from solid carbide with a CVD-applied TiCN and Al2O3 multilayer coating. The 80-degree diamond shape with a 7-degree relief angle and positive rake geometry makes this insert well-suited for general-purpose external turning operations. The IC8250 grade provides a balanced combination of wear resistance and toughness for use on steel and stainless workpiece materials. The inscribed circle measures 0.5 inches, the corner radius is 0.0315 inches (1/32 inch), and the insert length is 12.90 mm (0.5079 inches). It is held in the toolholder via a screw clamp (Clearance Code C, Tolerance Code M).

This insert is intended for CNC and manual lathe turning applications in production and job-shop environments. The SM chip breaker geometry targets medium cutting conditions on steel (ISO P) and stainless steel (ISO M) workpieces. It is used by machinists and tooling specialists in metalworking operations requiring a reliable, repeatable CVD-coated carbide insert. The maximum depth of cut is 3.50 mm (0.1378 inches). These inserts comply with ISO 13399 tooling data standards, making them compatible with digital tooling management systems.

Key Features

• CCMT432SM geometry with 80-degree diamond shape and positive rake for reduced cutting forces
• IC8250 grade: CVD-applied TiCN and Al2O3 multilayer coating for wear resistance on steel and stainless
• SM chip breaker optimized for medium turning conditions on ISO P and ISO M materials
• Screw-clamp holding method (insert style CCMT, Clearance Code C, Tolerance Code M)
• Compliant with ISO 13399 tooling data standard for digital tool management integration
• Maximum depth of cut 3.50 mm (0.1378 inches); corner radius 0.0315 inches

Compatibility

Designed for use in CCMT432-style screw-clamp turning toolholders. The CCMT insert style, 0.5-inch inscribed circle, 3/16-inch thickness, and standard hole diameter of 0.2165 inches (5.50 mm) conform to industry-standard CCMT432 toolholder pocket specifications. Verify toolholder pocket style and clamp compatibility before installation.

Installation Notes
