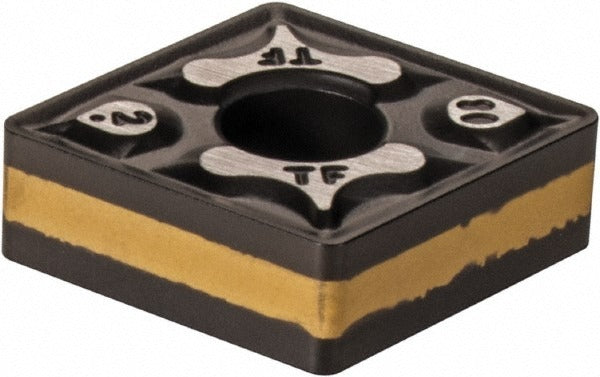

Iscar 5507754 Cnmg 432-TF IC8250 Turning Insert Solid Carbide

Product Description

The ISCAR 5507754 is a CNMG 432-TF turning insert in the Isoturn series, designed for general turning operations on CNC lathes and turning centers. Built from solid carbide and finished with a CVD-applied TiCN, Al2O3, and TiN multilayer coating, this insert delivers wear resistance and thermal stability across a range of cutting conditions. The 80-degree diamond (C-style) shape with a neutral 0-degree relief angle suits positive-rake toolholders. With a 0.5-inch inscribed circle and a 0.031-inch corner radius, it handles moderate to aggressive material removal. Machinists and tooling specialists install this insert in compatible CNMG-style clamp or pin-lock toolholders.

This insert is rated for primary use on stainless steel and steel workpieces, corresponding to ISO material codes M and P. It fits into typical turning center setups where consistent chip control is required across roughing and semi-finishing passes. The TF chip breaker geometry is suited to moderate feed rates and depths of cut up to 3.99 mm (0.157 inches). It is part of ISCAR's Isoturn product line, which targets general-purpose external and internal turning applications in production environments.

Key Features

• CVD multilayer coating: TiCN, Al2O3, and TiN for thermal and wear resistance
• 80-degree diamond insert shape (CNMG style) with positive rake geometry
• TF chip breaker geometry optimized for stainless steel and steel turning
• Clamp and pin insert holding method for secure seating in toolholders
• Maximum depth of cut: 3.99 mm (0.157 inches)
• Meets ISO 13399 tooling data standards for digital integration

Compatibility

Designed for use in CNMG 432-style clamp or pin-lock turning toolholders. Compatible with ISO CNMG insert pockets with tolerance code M and clearance code N. Verify toolholder specifications before installation.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before changing inserts. Seat the insert fully in the pocket and secure with the appropriate clamp or pin to the toolholder manufacturer's specified procedure. Inspect the insert seat and shim for wear or debris before installing a new insert to avoid seating errors.
