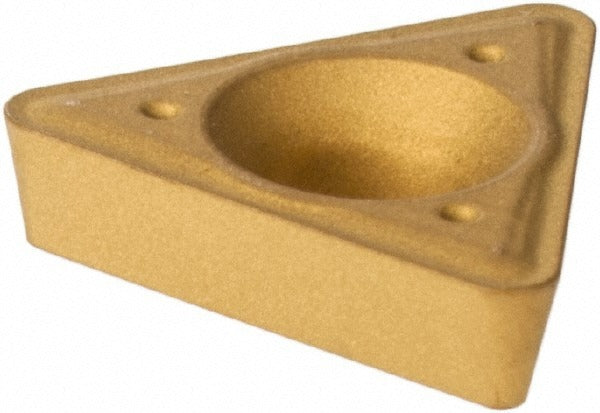

Iscar 5507591 TPMT2-2 IC9250 Carbide Turning Insert

Product Description

The ISCAR 5507591 is a solid carbide turning insert in the TPMT2-2 geometry, designed for precision finish turning on CNC lathes and turning centers. It carries a CVD-applied dual-layer coating of TiCN and Al2O3, combining abrasion resistance with thermal stability. The triangular insert shape provides a 60-degree included angle and a positive side clearance for clean, low-force cutting action. With a 0.031-inch corner radius and an 11 mm insert length, this insert is optimized for light to moderate depth-of-cut finishing passes. It is held in place by a screw-clamp system and conforms to ISO 13399 standards. Machinists and CNC operators working in job shops or production environments are the primary installers.

This insert is suited for finishing operations on steel, stainless steel, and hardened materials. The IC9250 grade is engineered to deliver high wear resistance when cutting steel (P-class) and stainless steel (M-class), and high wear resistance when machining hardened materials (H-class). The maximum depth of cut is 3.99 mm (0.157 inches), making it best applied in light finishing passes rather than roughing cuts. It fits into Isoturn series toolholders that accept TPMT-style inserts. Each package contains one insert.

Key Features

• CVD dual-layer TiCN and Al2O3 coating for thermal and abrasion resistance
• TPMT geometry with positive side clearance for reduced cutting forces during finishing
• IC9250 grade rated for steel, stainless steel, and hardened material applications
• 0.031-inch corner radius suited for fine-surface finish requirements
• Screw-clamp insert holding method for secure, repeatable positioning
• Conforms to ISO 13399 standards; ANSI size code 2-2, ISO size code 110208

Compatibility

Designed as an OEM-style replacement for TPMT2-2 geometry screw-clamp toolholders in the ISCAR Isoturn series that accept triangular TPMT-style inserts.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Ensure the machine spindle is fully stopped and the toolholder is clear of the work zone before changing inserts. Seat the insert firmly against the toolholder pocket locating surfaces before tightening the clamping screw. Follow the toolholder manufacturer torque specifications for the clamping screw to avoid insert fracture or improper seating.
