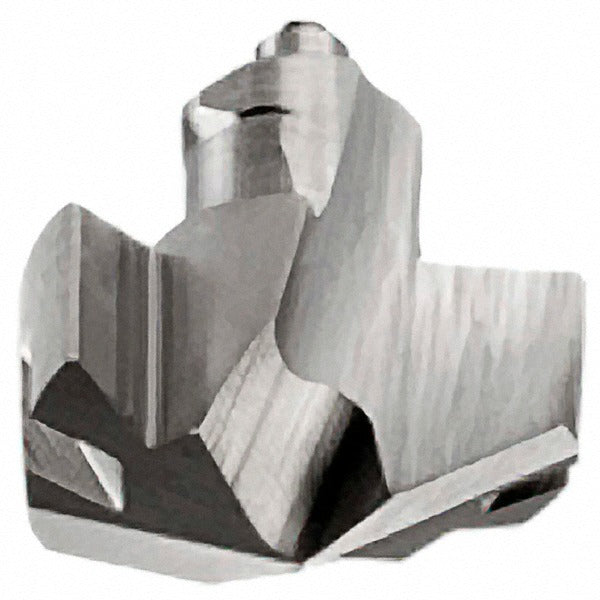

Iscar 5506714 Carbide Replaceable Tip Drill 0.941 in IC908

Product Description

The ISCAR 5506714 is a solid carbide replaceable tip drill insert in the ICM series, designed for high-performance drilling in demanding materials. The tip carries an IC908 submicron carbide grade with a PVD-applied TiAlN coating, delivering heat resistance and edge retention in abrasive cutting environments. It features a 140-degree included angle with a web-thinned, T-Land point geometry and a slow spiral flute configuration. The cutting diameter is 0.941 inches with a functional length of 0.524 inches. This insert is intended for licensed machinists and CNC operators working in precision drilling applications where insert replacement extends tool body life.

The ICM0941 tip is optimized for drilling stainless steel, superalloys, and titanium as its primary workpiece materials. It also performs in steel, cast iron, and hard materials. The slow spiral and web-thinned point reduce thrust force and improve chip evacuation in tough-to-machine alloys. It is suited for CNC machining centers in both job shop and production environments where consistent hole quality and controlled tolerances are required. The insert conforms to ISO 13399 standards, supporting tool data integration with CAM software and digital tooling systems.

Key Features

• IC908 submicron carbide grade with PVD TiAlN coating for extended tool life in hard and abrasive materials
• 140-degree included angle with web-thinned, T-Land point geometry reduces thrust and improves centering
• Slow spiral flute design promotes controlled chip flow in stainless steel, titanium, and superalloys
• Replaceable tip design preserves the drill body and lowers per-hole tooling cost
• Conforms to ISO 13399 for compatibility with digital tooling libraries and CAM integration
• Insert seat size 23, ISO number ICM 239, twist-held insert mounting method

Compatibility

Designed as a replaceable tip insert for ISCAR ICM series drill bodies accepting insert seat size 23. Specific body compatibility should be confirmed against ISCAR ICM series tooling documentation before ordering.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the drill body is clean and free of chips or debris at the insert seat before seating the tip. Use the manufacturer-specified torx or clamping key to secure the insert; do not use substitute tools that may damage the seat or insert. Verify runout and seating before initiating the first cut.
