Iscar 5506704 ICM0807 IC908 Carbide Tip Drill Insert

Product Description

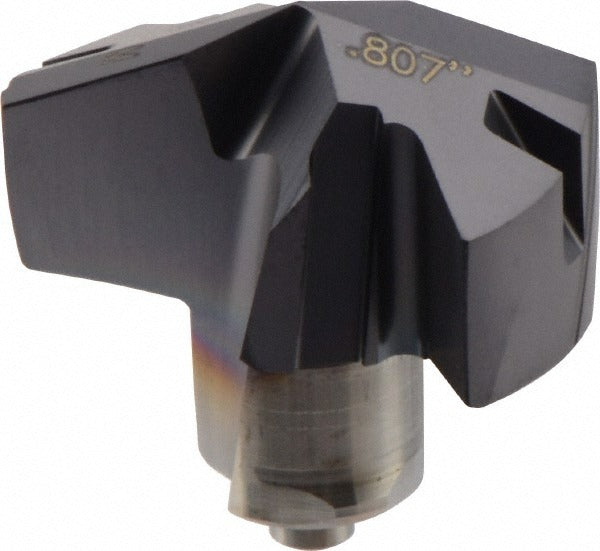

The ISCAR 5506704 is an ICM0807 series replaceable carbide tip drill insert finished with a TiAlN PVD coating and manufactured to IC908 submicron carbide grade. The insert features a 140-degree included angle, a slow spiral flute with T-Land style geometry, and a web-thinned point for reduced thrust force and improved chip evacuation. Cutting diameter is 0.807 inches (20.5 mm) and functional length is 0.334 inches. This replaceable tip format allows technicians to swap worn inserts without replacing the full drill body, reducing tooling cost and downtime in production environments.

The ICM0807 insert is designed for drilling operations in stainless steel, superalloy, and titanium as primary workpiece materials, as well as steel, cast iron, and hard materials as secondary applications. The IC908 submicron carbide grade combined with the TiAlN PVD coating makes it well suited for high-temperature, abrasive cutting conditions common in aerospace, medical, and industrial machining. Machinists and CNC operators working in shops that require repeatable hole quality in difficult materials will find this insert appropriate for those demands.

Key Features

• IC908 submicron carbide grade with TiAlN PVD coating for heat and wear resistance
• 140-degree included angle with web-thinned point reduces entry thrust and improves centering
• Slow spiral flute with T-Land geometry for controlled chip flow in tough materials
• Replaceable tip design compatible with ICM series drill bodies, ISO 13399 compliant
• Primary applications in stainless steel, superalloy, and titanium workpieces
• 2-flute configuration with twist insert holding method

Compatibility

Designed for use with ISCAR ICM series replaceable tip drill bodies sized for ICM 205 insert seat size 20. Verify body compatibility using ISO number ICM 205 before ordering.

Installation Notes

Installation and replacement of carbide tip drill inserts should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before removing or seating the insert. Use the appropriate ISCAR torque key or wrench as specified by the drill body manufacturer to seat the insert twist-lock mechanism - do not use improvised tools that may damage the seating surfaces. Inspect the insert pocket for chips or wear before installing a new tip.
