Iscar 5505001 Turning Shim S Style 1/2 Inch Inscribed Circle

Product Description

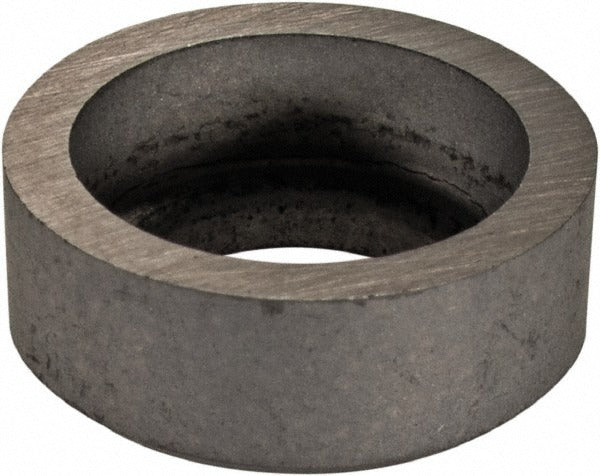

The ISCAR 5505001 is an S-style shim designed for indexable turning toolholders. Shims seat behind the cutting insert in the toolholder pocket, providing a stable, rigid support surface that protects the pocket from damage during cutting and ensures consistent insert positioning. This shim is configured for negative rake applications and is compatible with cylindrical inserts carrying a 1/2 inch (12.70 mm) inscribed circle. It is a direct replacement component used by machinists and toolroom technicians during insert changes or toolholder pocket maintenance on CNC lathes and manual turning centers.

This shim is intended for turning operations using CRDNN- and CRGNL/CRGNR-style toolholders in both shop and production environments. It is suited to applications where cylindrical, negative-rake inserts are run in medium to heavy turning passes. The shim restores correct insert seating height and angular positioning after pocket wear. A confirmed list of compatible complete toolholders is provided in the Compatibility section below.

Key Features

• S-style shim geometry matched to cylindrical insert pockets
• Negative rake configuration for compatibility with negative-rake turning inserts
• 1/2 inch (12.70 mm) inscribed circle sizing for precise insert support
• Protects toolholder pocket from direct cutting-force contact during turning
• Sold individually; minimum order quantity of 5 units

Compatibility

Compatible with the following complete toolholders: CRDNN 2525M-12CE, CRDNN 2525M-12CEA, CRGNL 2525M-12CE, CRGNL 2525M-12CEA, CRGNL 3225P-12CE, CRGNR 2020K-12CEA, CRGNR 2525M-12CE, CRGNR 2525M-12CEA, CRGNR 3225P-12CE.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before replacing the shim, ensure the machine is fully stopped, in an e-stop or locked-out state, and the spindle is confirmed stationary. Clean the toolholder pocket and inspect for pocket-seat damage before seating the new shim. Do not reuse a shim that shows cracks, deformation, or contact damage, as a compromised shim will not support the insert correctly and can lead to insert failure during cutting.
