Iscar 5503798 Wnmg 432-TF IC20 Turning Insert Solid Carbide

Product Description

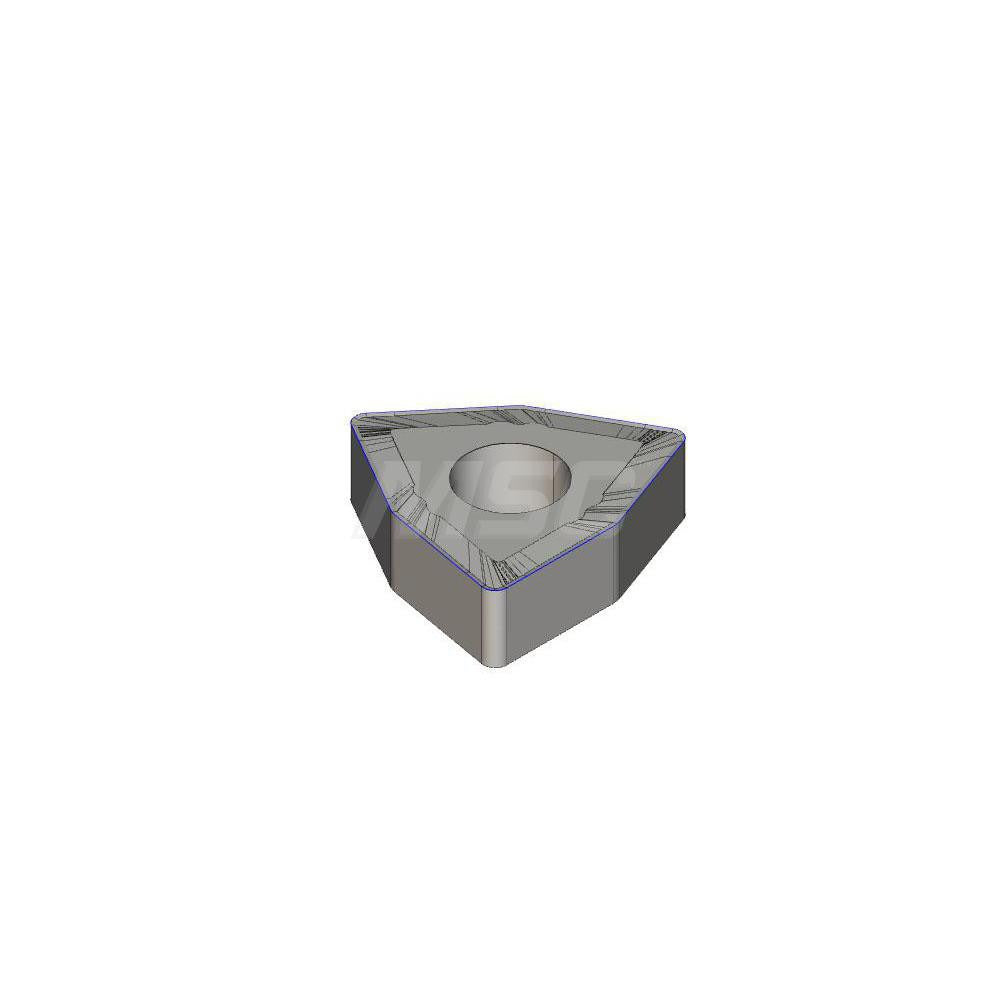

The ISCAR 5503798 is a solid carbide, uncoated turning insert in the WNMG 432-TF geometry, part of the Isoturn series. It features an 80-degree trigon (W-shape) insert profile with a positive rake angle and a neutral 0-degree relief angle (clearance code N, tolerance code M). The inscribed circle measures 0.5000 inches and the corner radius is 0.0315 inches (1/32 inch). Insert length is 8.70 mm (0.3425 inches) and insert thickness is 0.1874 inches. The TF chip breaker geometry is designed for light-to-medium turning operations across a broad range of workpiece materials. Holding method is clamp and pin. This insert is sold individually with a minimum order quantity of 10.

The WNMG 432-TF IC20 insert is rated for universal primary workpiece material compatibility, covering ISO material groups H, K, M, N, and S. It is suited for external turning applications on CNC lathes and turning centers where a positive-rake insert with controlled chip breaking is required. The IC20 substrate grade corresponds to material grades C2 and C3, making it applicable across cast iron, non-ferrous, stainless, and heat-resistant alloy turning at appropriate cutting parameters. It is a standard replacement insert for Isoturn toolholders that accept WNMG 432 geometry inserts.

Key Features

• WNMG 432-TF geometry with positive rake for reduced cutting forces
• 80-degree trigon insert shape (W) with 0.0315-inch corner radius
• Solid carbide IC20 substrate, uncoated — no coating degradation at regrind
• TF chip breaker for light-to-medium turning across multiple material groups
• Compatible with clamp-and-pin style WNMG toolholders
• Conforms to ISO 13399 standards for insert identification and tooling data

Compatibility

Designed as an OEM-style replacement insert for Isoturn series toolholders accepting WNMG 432 insert geometry with clamp-and-pin holding. Compatible with ISO material groups H, K, M, N, and S per manufacturer designation.

Installation Notes
