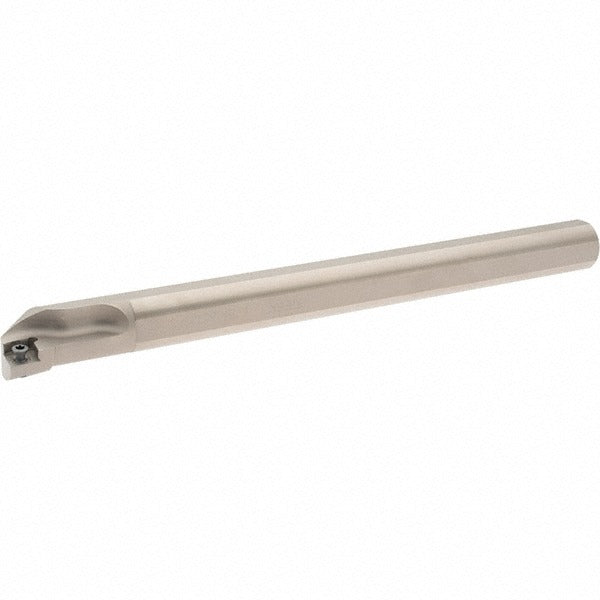

Iscar 3600832 Indexable Boring Bar Right Hand S-sclc

Product Description

The ISCAR 3600832 is a right-hand S-SCLC indexable boring bar designed for internal turning operations on CNC lathes and machining centers. It accepts CC.T 43.. series diamond-shaped inserts held by screw-lock clamping, delivering a negative rake angle of -5 degrees for stable, controlled cutting in ferrous and non-ferrous materials. With a minimum bore diameter of 1.22 inches and a maximum bore depth of 2.17 inches, this bar suits a wide range of internal diameter finishing and semi-finishing applications. The 1-inch shank diameter and 12-inch overall length give machinists solid rigidity and reach in standard toolpost or VDI setups.

This boring bar is part of ISCAR's Isoturn series, intended for production turning environments where insert indexability and repeatable tool life are priorities. It is suited to job shops, production machine shops, and precision turning cells handling medium to large bores in shaft, sleeve, and housing components. Coolant-through capability is not available on this holder, so external coolant delivery should be planned accordingly during setup.

Key Features

• S-SCLC toolholder style with screw-lock insert clamping for secure, repeatable indexing
• Accepts CC.T 43.. diamond-shaped inserts, compatible insert size code 43
• Negative rake angle (-5 degrees) for strong cutting edge and stable chip formation
• 1-inch shank diameter with 12-inch overall length for extended reach and rigidity
• Right-hand cutting direction for standard lathe rotation setups
• Conforms to ISO 13399 tooling data standards for CAM and presetter integration

Compatibility

Designed for use with CC.T 43.. series diamond-shaped inserts (compatible insert size code 43). Fits standard 1-inch round shank toolholders and boring bar holders. Part of the ISCAR Isoturn series.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Secure the 1-inch shank firmly in the boring bar holder and verify axial alignment before cutting. Power down and lock out the machine spindle before changing inserts or adjusting the holder. Do not exceed the recommended bore depth of 2.17 inches, and confirm insert seating is complete before initiating a cut.
