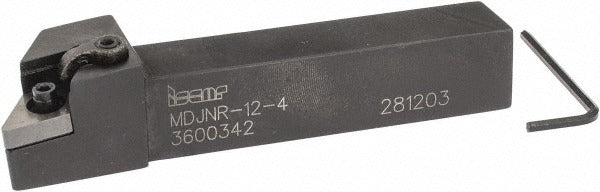

Iscar 3600342 Mdjn Turning Toolholder Right Hand 3/4 Inch

Product Description

The ISCAR 3600342 is a right-hand MDJN-style indexable turning toolholder designed for external turning operations on CNC lathes and manual turning centers. Built from steel, it features a negative rake angle of -6 to -7 degrees and accepts DN..43. series inserts, including the DNMG432-GN. The shank measures 0.75 inches square, and the overall length is 4.5 inches. This toolholder is part of the Isoturn series and conforms to ISO 13399 standards for cutting tool data representation. It is installed and set up by machinists and CNC operators in production and job-shop environments.

The 3600342 is suited for right-hand cutting direction on ferrous and non-ferrous workpieces in typical turning applications. Its MDJN toolholder style provides a 3-degree lead angle, making it appropriate for general-purpose turning, facing, and profiling passes. The compatible insert designation is DN..43., with the DNMG432-GN listed as a directly compatible insert size code. This toolholder fits standard square-shank tool blocks and turrets commonly found on small to mid-size CNC turning centers and engine lathes.

Key Features

• MDJN toolholder style with 3-degree lead angle for general-purpose turning
• Negative rake geometry (-6 to -7 degrees) for improved edge strength and insert life
• Accepts DN..43. series inserts, including DNMG432-GN
• 0.75 inch x 0.75 inch square shank fits standard turret and tool block pockets
• 4.5 inch overall length with 1.25 inch head length
• Isoturn series construction, conforms to ISO 13399 cutting tool data standards
• Steel construction for rigidity and durability in production turning

Compatibility

Designed to accept DN..43. series indexable inserts; compatible insert size code is DNMG432-GN. Fits standard 0.75 inch square-shank tool blocks and turret pockets on CNC turning centers and engine lathes.

Installation Notes

Installation is performed by machinists or CNC setup technicians. Power down or engage the E-stop on the machine and ensure the spindle is fully stopped before changing toolholders or inserts. Seat the shank fully in the tool block or turret pocket and torque the clamping screws evenly according to the machine tool manufacturer specifications. Do not exceed the insert clamping torque specified on the insert screw or clamp documentation supplied with the toolholder.
