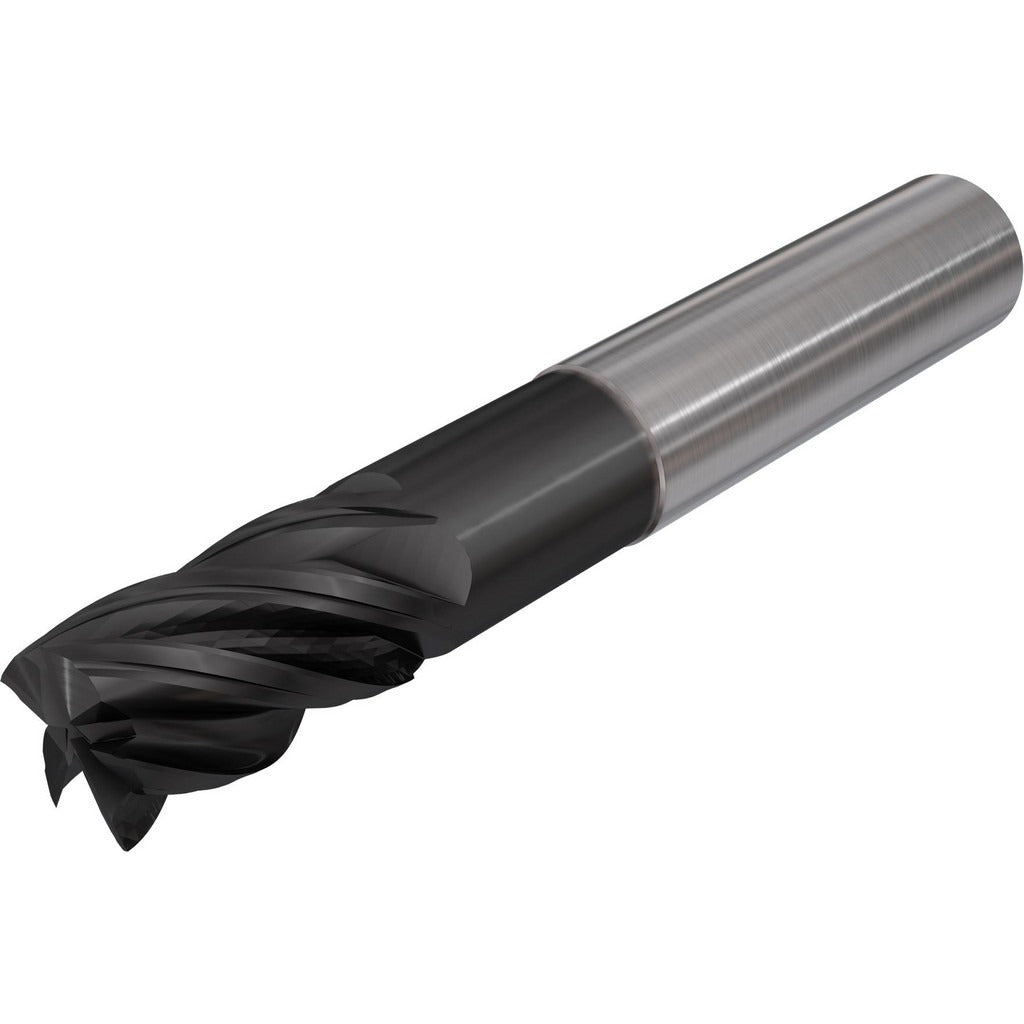

Iscar 3401280 Square End Mill 7/16 in 4 Flute Carbide

Product Description

The ISCAR 3401280 is a solid carbide square end mill designed for precision milling operations in metal cutting applications. It features a 7/16-inch diameter with a 1-inch length of cut and a 4-flute, right-hand spiral configuration with a 38-degree helix angle. The variable index flute spacing reduces chatter and improves surface finish at higher feed rates. A TiAlCN coating extends tool life in ferrous and hardened material applications. The submicron carbide grade provides the edge toughness and wear resistance required for demanding cuts. This end mill is single-end and center-cutting, allowing plunge entry and full slot milling in one tool.

This end mill is suited for CNC machining centers and manual mills handling ferrous metals, stainless steel, hardened steels, and similar difficult-to-machine materials in production shop and toolroom environments. The right-hand cutting direction and right-hand flute geometry are standard for conventional vertical and horizontal milling setups. The 7/16-inch shank diameter matches common collet and end mill holder sizes. At 2-3/4 inches overall length, the tool fits standard spindle clearances without extended-reach toolholding.

Key Features

• 7/16-inch cutting diameter with matched 7/16-inch shank for direct collet mounting
• 4-flute right-hand spiral design at 38-degree helix angle for efficient chip evacuation
• Variable index flute spacing reduces vibration and improves finish quality
• TiAlCN coating for thermal resistance and extended tool life in hardened materials
• Center-cutting geometry allows direct plunge milling without pre-drilled entry
• Submicron solid carbide grade for edge stability in tough alloys

Compatibility

Designed as a standard-shank replacement end mill compatible with 7/16-inch collets, hydraulic chucks, and end mill holders used in CNC machining centers and manual knee mills.

Installation Notes

Installation and tool changes must be performed with the machine powered down and the spindle fully stopped. Secure the shank to the full recommended engagement depth in the collet or holder to prevent pullout under load. Use calibrated torque tooling when tightening collet nuts per the toolholder manufacturer specifications. Inspect the collet bore and shank for chips or contamination before seating the tool.
