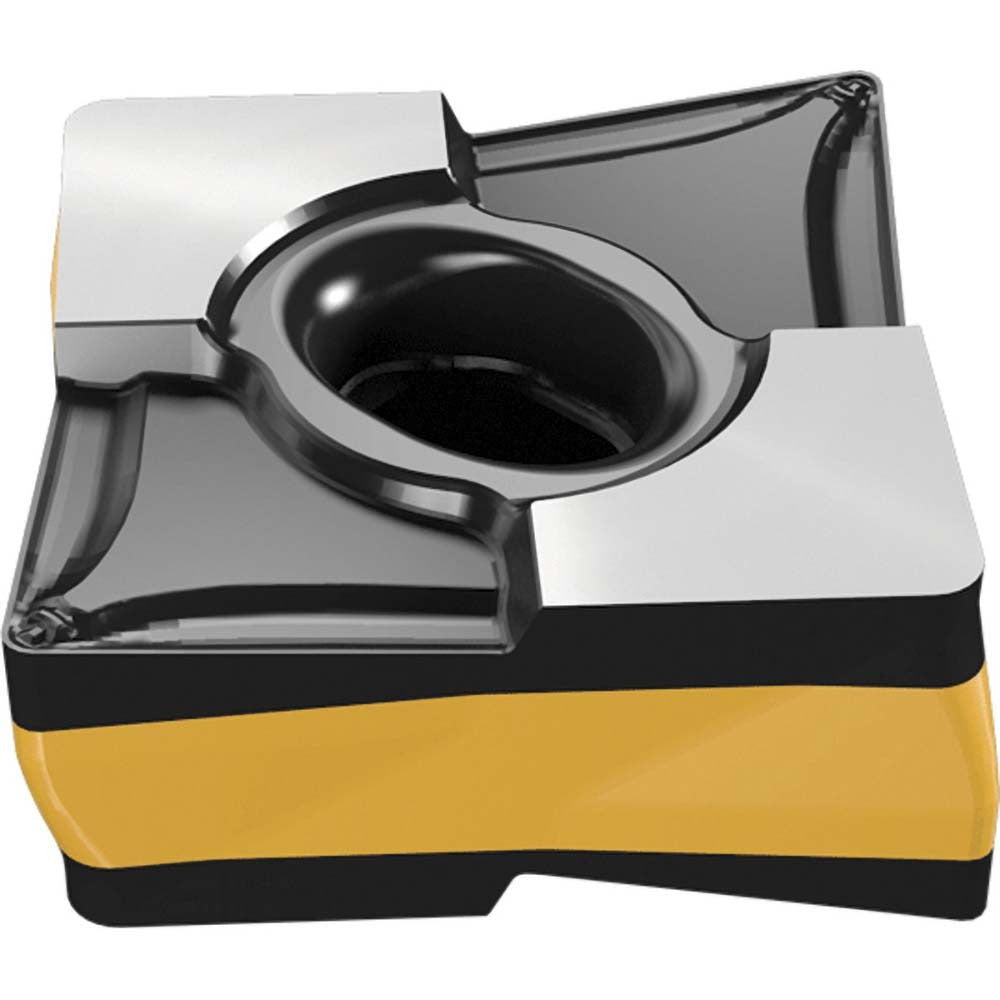

Iscar 3337262 Carbide Turning Insert Diamond 0.4mm

Product Description

The ISCAR 3337262 is a CXMG 090404-F3P IC8150 solid carbide turning insert from the Logiq4turn series, designed for precision external turning operations on CNC lathes and turning centers. Featuring a diamond-shaped (C) insert geometry with an 80-degree included angle and a 0.4 mm (0.0157 inch) corner radius, this insert delivers controlled cutting action in demanding metal-removal applications. The IC8150 grade uses a CVD-applied multilayer TiCN/Al2O3/TiCN/TiN coating for wear resistance and thermal stability. The F3P chip breaker promotes positive-rake cutting with effective chip control. It is installed by machinists and CNC tooling technicians in production and job-shop environments.

This insert is suited for turning cast iron and steel workpieces, corresponding to ISO material groups K and P. The Logiq4turn platform targets general turning applications where consistent chip control and surface finish are priorities. Maximum depth of cut is 2.00 mm (0.0790 inch). The CXMG geometry with X clearance code and M tolerance code makes this insert a fit for standard CXMG-compatible tool holders used in both roughing and finishing passes at moderate to high cutting speeds.

Key Features

• IC8150 grade with CVD multilayer TiCN/Al2O3/TiCN/TiN coating for extended tool life on steel and cast iron
• Diamond insert shape (C) with 80-degree included angle for strong cutting edge geometry
• F3P chip breaker optimized for positive-rake, controlled chip formation
• 0.4 mm corner radius for a balance of edge strength and surface finish capability
• Maximum depth of cut of 2.00 mm (0.0790 inch) suited for light-to-moderate material removal
• Conforms to ISO 13399 tooling data standards for CAM and tool management integration

Compatibility

Designed for use in standard CXMG-style tool holders compatible with the CXMG 090404 insert size. Primary workpiece materials are cast iron (ISO group K) and steel (ISO group P).

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or CNC tooling technician following the tool holder manufacturer's torque specifications for the clamping screw. Ensure the insert pocket and seating surface are clean and free of chips before installation to prevent seating errors. Always power down and lock out the machine spindle before changing inserts. Verify insert orientation and chip breaker direction relative to the intended cutting geometry before resuming operation.
