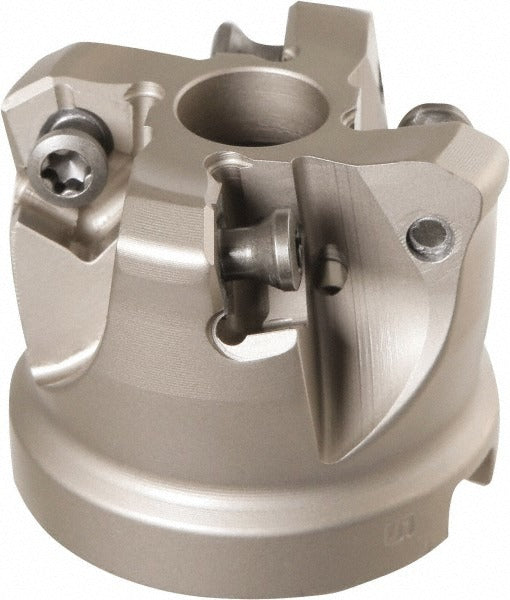

Iscar 3106850 High-feed Face Mill 1.5in 4-flute Helido

Product Description

The ISCAR 3106850 is an indexable high-feed face mill from the Helido series, designed for aggressive material removal at high feed rates in milling applications. Built around the MF FWX-07 cutter style, this right-hand cutting tool accepts four H600 WXCU inserts held in place by screw-lock retention. It features through-coolant capability to manage heat and chip evacuation at the cutting zone. The adjustable cutting diameter ranges from 1.02 to 1.5 inches, with a maximum depth of cut of 0.106 inches and a maximum ramping angle of 2.20 degrees. At 0.5 pounds, it is a compact, rigid toolholder suited to high-productivity face milling on CNC machining centers.

This face mill is intended for use on CNC vertical and horizontal machining centers in shop environments requiring high metal removal rates with controlled depth-of-cut passes. The high-feed geometry is well suited for roughing and semi-finishing operations on ferrous and non-ferrous workpieces. Through-coolant support makes it effective in deep-pocket or difficult-chip-evacuation scenarios. The 0.5-inch arbor hole provides compatibility with standard toolholder arbors common in production machining. It is typically installed and set up by CNC machinists, toolroom technicians, or manufacturing engineers.

Key Features

• Adjustable cutting diameter from 1.02 to 1.5 inches with 1.5-inch maximum body diameter
• Accepts four H600 WXCU indexable inserts secured by screw-lock method
• Through-coolant design for effective heat control and chip evacuation
• Maximum depth of cut of 0.106 inches with a maximum ramping angle of 2.20 degrees
• Right-hand cutting direction; MF FWX-07 cutter style in the Helido series
• ISO-standard construction; catalog number MF FWX D1.50-04-0.50-07

Compatibility

Compatible inserts include H600 WXCU 040310HP, H600 WXCU 040310T, H600 WXCU 05T312HP, H600 WXCU 05T312T, H600 WXCU 070515HP, H600 WXCU 070515T, H600 WXCU 080612HP, H600 WXCU 080612T, and H600 WXCU 080616RM. Fits standard 0.5-inch arbor toolholders.

Installation Notes

Installation is performed by CNC machinists or toolroom technicians following standard machine tool setup procedures. Power down the spindle and lock out the machine before mounting or indexing inserts. Use a calibrated torque wrench when tightening insert screws to manufacturer specification - do not overtighten or use impact tools on insert fasteners. Verify runout with a dial indicator after mounting and before resuming cutting operations.
