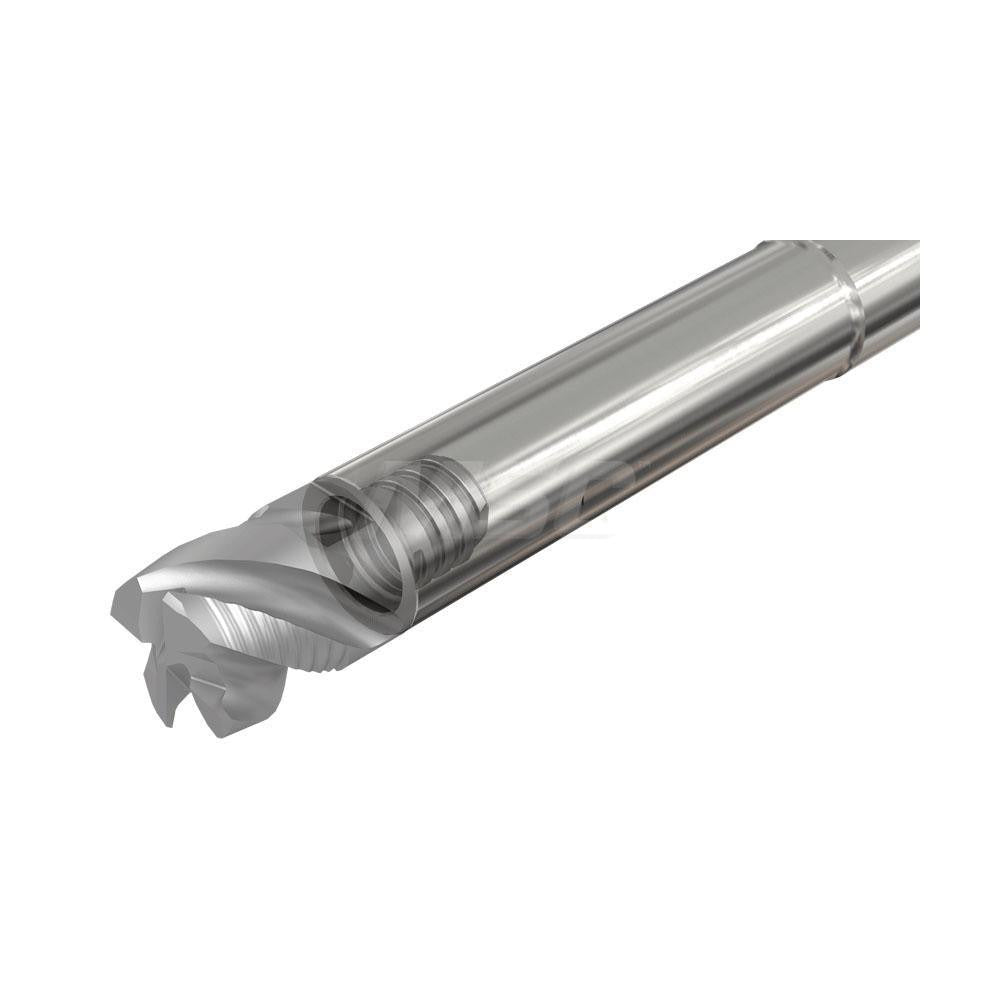

Iscar 3104817 Replaceable Tip Milling Shank Multimaster

Product Description

The ISCAR 3104817 is a replaceable tip milling shank designed for use with the Multimaster modular tooling system. It features a 20 mm projection and a 10 mm straight shank with a 90-degree shank type, making it suitable for a range of milling operations where quick tip changes and consistent performance are required. The shank is constructed from tungsten for rigidity and wear resistance. The overall length is 70 mm (2.756 inches), the neck diameter is 9.6 mm, and the neck thread size is T06. Coolant-through capability is built in, supporting chip evacuation and thermal management during cutting. The toolholder style is MM S-A.

This shank is intended for professional machinists and tooling technicians working with CNC milling machines that accept Multimaster-compatible modular tooling. It is suited for precision milling applications in metalworking environments where interchangeable tip systems reduce downtime and improve process flexibility. The shank accommodates several Multimaster tip styles, including MM EB, MM EC-4, MM GRIT-16K/18P, MM GRIT-K/P-45A, and MM HCR, as listed in the product specifications. This makes it a versatile shank body across multiple cutting strategies within the same modular platform.

Key Features

• Multimaster modular system compatibility with T06 neck thread for secure tip engagement
• Coolant-through design supports chip evacuation and heat control at the cutting zone
• Tungsten construction provides rigidity and resistance to deflection under milling loads
• 20 mm projection and 9.6 mm neck diameter suited for moderate-reach milling setups
• Straight shank with 90-degree shank type fits standard collet and toolholder configurations
• Compatible with multiple Multimaster tip styles including MM EB, MM EC-4, and MM HCR

Compatibility

Compatible with Multimaster series replaceable milling tips including MM EB, MM EC-4, MM GRIT-16K/18P, MM GRIT-K/P-45A, and MM HCR. Toolholder style is MM S-A. No Weldon flat is present on this shank.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with modular milling systems. Ensure the machine spindle is fully stopped and the tool is secured before attaching or removing the replaceable tip. Use the correct torque tool specified for Multimaster T06 thread connections — do not overtighten by hand or with improvised tools. Verify tip engagement and runout before beginning any cutting operation.
