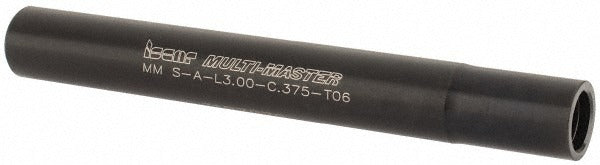

Iscar 3102472 Milling Shank 3/8 in 90 Deg Stepped Multimaster

Product Description

The ISCAR 3102472 is a replaceable tip milling shank in the Multimaster series, designed for use with modular milling tooling systems that accept interchangeable cutting heads. This shank features a 90-degree stepped configuration with a straight shank body measuring 0.375 inches in diameter and an overall length of 3.0 inches. It uses a T06 neck thread and a neck diameter of 0.364 inches, providing a secure interface between the cutting head and the toolholder. Built from steel, this shank is suited for demanding machining environments and includes through-coolant capability to support chip evacuation and heat management during milling operations.

This shank is intended for use in CNC machining centers and milling machines where modular tooling systems are employed. The Multimaster platform allows rapid head changes without removing the shank from the spindle, making it practical for job shops and production environments running multiple operations. It is installed and serviced by machinists and tooling technicians working with precision metalcutting equipment. The MM S-A toolholder style and T06 thread connection align with standard Multimaster head offerings.

Key Features

• 90-degree stepped shank design for Multimaster modular milling system
• T06 neck thread for secure, repeatable head engagement
• Through-coolant capable to support chip removal and thermal control
• Steel construction for durability in milling applications
• Overall length of 3.0 inches with a 0.6-inch projection
• Straight shank shape compatible with standard ER and Weldon-style toolholders

Compatibility

Designed as an OEM-style replacement shank for use within the ISCAR Multimaster modular milling system, compatible with Multimaster series cutting heads using the T06 thread interface. Catalog reference: MM S-A-L3.00-C.375-T06.

Installation Notes

Installation and setup should be performed by a qualified machinist or tooling technician familiar with modular milling systems. Ensure the machine spindle is fully stopped and the tool is properly secured in the toolholder before engaging or disengaging the cutting head. Apply the manufacturer-recommended torque procedure for the T06 thread interface using appropriate assembly tools. Inspect the neck thread and seating surfaces for damage or contamination before each head change.
