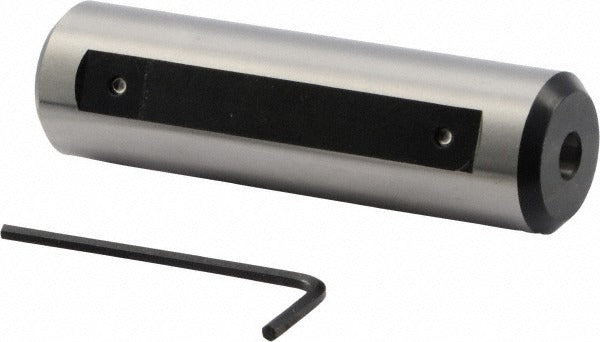

Iscar 2893903 Boring Grooving Bar Holder Through Coolant

Product Description

The ISCAR 2893903 is a boring and grooving bar holder designed for precision internal turning and grooving operations on CNC lathes and turning centers. This toolholder features a 0.236-inch bore ID and a 1-inch OD shank, with an overall length of 3.543 inches and a head diameter of 0.71 inches. A through-coolant design delivers cutting fluid directly to the cutting zone, helping to manage heat and evacuate chips during deep-bore or tight-clearance operations. Part of the ISCAR PICCO series, this holder accepts compatible PICCO boring and grooving bars for modular tooling setups. It is secured with four lock-down screws for rigid, repeatable clamping.

This holder is suited for small-bore internal grooving and boring applications where tight radial clearances demand compact tooling. The PICCO series is commonly used in swiss-type, gang-tool, and conventional CNC turning setups where minimal bore diameter and short overhangs are critical. It is appropriate for production turning environments machining small-diameter bores in steel, stainless, aluminum, and similar workpiece materials. Machinists and toolroom technicians working with modular PICCO-series bars will find this holder a direct fit in their existing PICCO tooling systems.

Key Features

• Through-coolant design delivers fluid directly to the cutting zone for heat control and chip evacuation
• 0.236-inch bore ID accommodates PICCO-series small-diameter boring and grooving bars
• 1-inch OD shank fits standard 1-inch bore toolholding blocks and turret stations
• 3.543-inch overall length suits typical small-bore turning reach requirements
• Four lock-down screws provide rigid clamping and repeatable bar positioning
• Part of the ISCAR PICCO modular tooling series for flexible small-bore setups

Compatibility

Designed for use with ISCAR PICCO-series boring and grooving bars. Compatible with toolholding setups that accept a 1-inch OD shank. Specific machine and turret compatibility should be verified against the PICCO series tooling documentation prior to ordering.

Installation Notes
