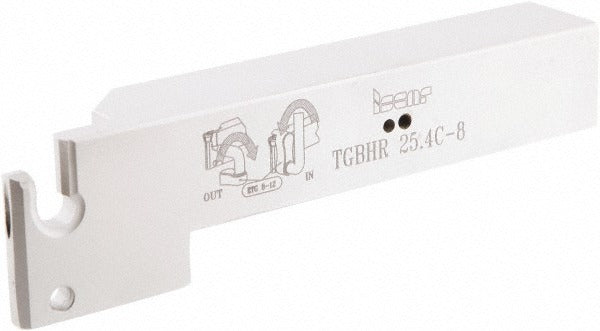

Iscar 2801592 Indexable Grooving Toolholder Sumo Grip

Product Description

The ISCAR 2801592 is an external right hand indexable grooving toolholder designed for precision grooving operations on CNC lathes and turning centers. Built to the TGBH style, this toolholder features a 1 inch by 1 inch steel shank with an overall length of 5.9 inches and a maximum depth of cut of 0.98 inches. The groove width is fixed at 0.315 inches. Through-coolant capability directs cutting fluid directly to the cutting zone, supporting higher cutting speeds and longer insert life. It is part of the ISCAR Sumo Grip series and conforms to ISO 13399 standards. Licensed machinists and CNC operators install this holder in production turning environments where consistent groove geometry and secure insert clamping are required.

This toolholder is suited for external grooving applications across a universal range of workpiece materials, including steel, stainless, cast iron, non-ferrous alloys, and superalloys, as indicated by material codes H, K, M, N, P, and S. The clamp-style insert holding method provides rigid support during interrupted cuts and high-feed grooving passes. It is a non-face grooving style holder intended for standard OD grooving on bar stock, shafts, and turned components in both job shop and production environments.

Key Features

• External right hand cutting direction with TGBH toolholder style
• Maximum depth of cut: 0.98 inches; groove width: 0.315 inches
• Through-coolant port for direct coolant delivery at the cutting edge
• 1 inch by 1 inch steel shank, 5.9 inches overall length
• Clamp-style insert retention for rigid, repeatable insert seating
• Compatible with universal workpiece material range (H, K, M, N, P, S codes)
• Conforms to ISO 13399 tooling interface standards

Compatibility

Accepts TAG N 8..C/W/M and TAGB/TAGBA 8.. inserts. Compatible insert size codes include TAG N-C/W/M, TAG N-J/JS/JT, TAG N-UT, TAG R/L-C, TAG R/L-J/JS, and TAGB/TAGBA. The manufacturer catalog reference for this holder is TGBHR 25.4C-8.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered down and the spindle locked before mounting or removing the toolholder. Secure the shank in the turret or tool block using the appropriate clamping torque per the machine tool manufacturer's specifications. Verify coolant line connection to the through-coolant port before resuming operation. Inspect the insert pocket and clamping surfaces for debris or damage each time an insert is indexed or replaced.
