Iscar 2801262 Indexable Grooving Toolholder Mahp

Product Description

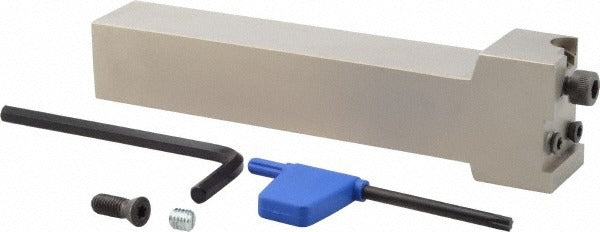

The ISCAR 2801262 is an external right-hand indexable grooving toolholder designed for precision grooving operations on CNC lathes and turning centers. Built on the Modular Grip (Modular Grip) platform with an MAHP toolholder style, it uses a wedge-based insert holding method for secure, repeatable insert seating. The shank measures 1 inch wide by 1 inch tall with a 5.02-inch shank length and an overall length of 6 inches. This toolholder accepts DG.. 2.. series grooving inserts and is rated to ISO 13399 standards, making it compatible with tool management systems that rely on standardized toolholder data.

This toolholder is suited for external non-face grooving applications in production turning environments. It is typically installed on square-shank tool blocks in gang-style or turret-style CNC lathes. The right-hand cutting direction makes it appropriate for standard left-to-right feed operations on workpieces held in the spindle. Machinists and CNC setup technicians working in job shops, production facilities, or aerospace and general metalworking applications will find this toolholder a direct-fit option for external grooving work requiring consistent insert indexing and positive insert retention.

Key Features

• External right-hand cutting geometry for standard OD grooving operations
• MAHP toolholder style with wedge insert holding method for rigid, repeatable insert clamping
• 1 inch x 1 inch square shank for compatibility with standard square-shank tool blocks
• 6-inch overall length with a 5.02-inch shank length for reach in typical turret setups
• Accepts a broad range of DG.. 2.. series inserts including DGL, DGN, and DGR styles
• Compliant with ISO 13399 tooling data standards for CNC tool management integration

Compatibility

Compatible inserts include: DGL 2200JS-15D, DGL 2200JS-6D, DGL 2202C-6D, DGL 2202J-6D, DGN 2002C, DGN 2002JT, DGN 2200JS, DGN 2202C, DGN 2202J, DGN 2202JT, DGN 2202LF, DGN 2502C, DGR 2200JS-15D, DGR 2200JS-6D, and DGR 2202C-6D.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Before changing inserts or mounting the toolholder, ensure the machine is in an E-stop state and the spindle is fully locked. Secure the shank in the tool block to the machine tool builder's recommended clamping torque using the appropriate hex key or clamping hardware. Do not use coolant-through circuits with this toolholder, as it is not rated for internal coolant delivery.
