Iscar 2800743 Indexable Grooving Toolholder Gdmw 2.4

Product Description

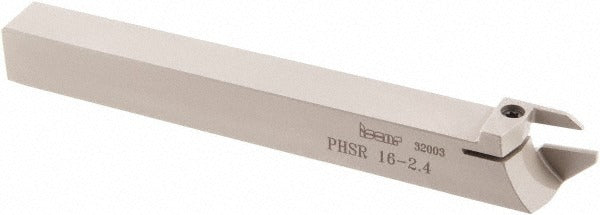

The ISCAR 2800743 is an external right-hand indexable grooving toolholder designed for precision grooving operations on CNC lathes and turning centers. Built to the Cut Grip series in a PHS toolholder style, it accepts GDMW 2.4 inserts secured by a screw-clamp holding method. The toolholder handles groove widths from 0.094 inches to 0.125 inches and reaches a maximum depth of cut of 0.625 inches. At 5.9 inches overall length with a 0.63 inches x 0.63 inches square shank and a shank length of 4.95 inches, it fits standard lathe tool blocks without modification. The tool is manufactured from steel and is rated for universal primary workpiece material compatibility across ISO material groups.

This toolholder is suited for external non-face grooving applications in both production and job-shop turning environments. It supports a maximum workpiece diameter of 1.26 inches and has a back-of-bar to cutting edge measurement of 0.594 inches, making it appropriate for tight-clearance grooving setups. The head length is 0.95 inches. Licensed machinists and CNC turning technicians performing OD grooving, necking, or parting-adjacent operations on steel, cast iron, non-ferrous, and high-temperature alloy workpieces will find this toolholder a direct fit. It does not include coolant-through capability.

Key Features

• External right-hand cutting geometry for OD grooving on turning centers
• Accepts GDMW 2.4 inserts with screw-clamp holding for rigid, repeatable insert seating
• Groove width range of 0.094 inches to 0.125 inches with 0.625 inches maximum depth of cut
• 0.63 inches x 0.63 inches square shank fits standard lathe tool blocks
• Rated for universal workpiece material groups including P, M, K, N, S, and H per ISO classification
• Conforms to ISO 13399 toolholder data standards for CAM and tool management system integration

Compatibility

Compatible with GDMW 2.4 series grooving inserts. The MSC/Manufacturer cross-reference number for this toolholder is PHSR/L 16-2.4. Designed as an OEM-style Cut Grip series PHS toolholder replacement or new installation for external right-hand grooving applications on CNC lathes accepting a 0.63 inches square shank.

Installation Notes
