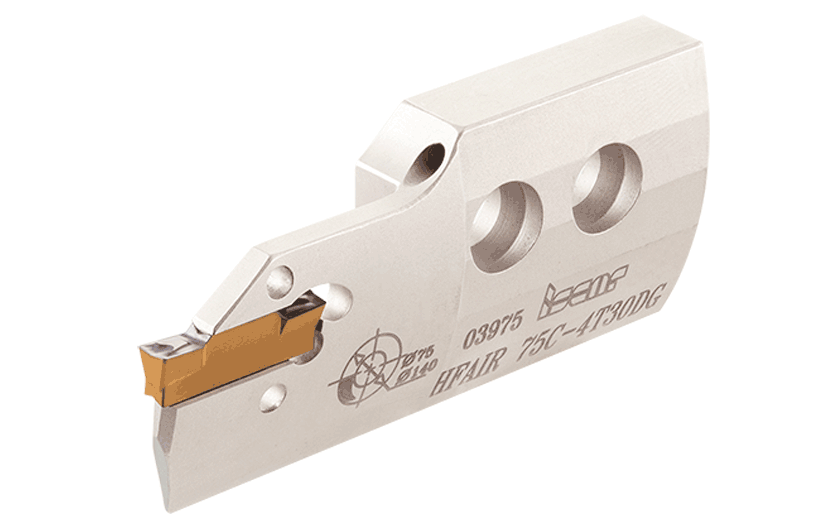

Iscar 2550027 Iscar Face Grv Adapter W.236 2.76-3.94 Tmax=1.102 REQ EDG33B

Product Description

The Iscar face groove adapter with MPN 2550027 is designed for precision and efficiency in machining tasks. Suitable for use in various boring applications, this adapter facilitates effective face groove operations.

• Max face diameter of three point nine four inches
• Insert width of zero point two three six inches
• Shank style is standard

Product Highlights

This adapter is ideal for left-hand operations and provides a maximum face groove depth of one point one zero two inches. It is compatible with specific inserts to enhance performance.

Product Information

Standard Information

• Brand: Iscar
• Direction: Left

Technical Specifications

• Min Face Diameter: 2.7600 inches
• Insert Width: 0.2360 inches
• Adapter Length: 2.7170 inches (69.012 mm)
• Max Face Groove Depth: 1.1020 inches
• Max Face Diameter: 3.9400 inches
• Max Blade Reach: 1.3780 inches (35.000 mm)
• Shank Style: Standard
