Iscar 2500133 1x6 RH Face Grv Holder W.197 3.74-5.12 Tmax=1.260

Product Description

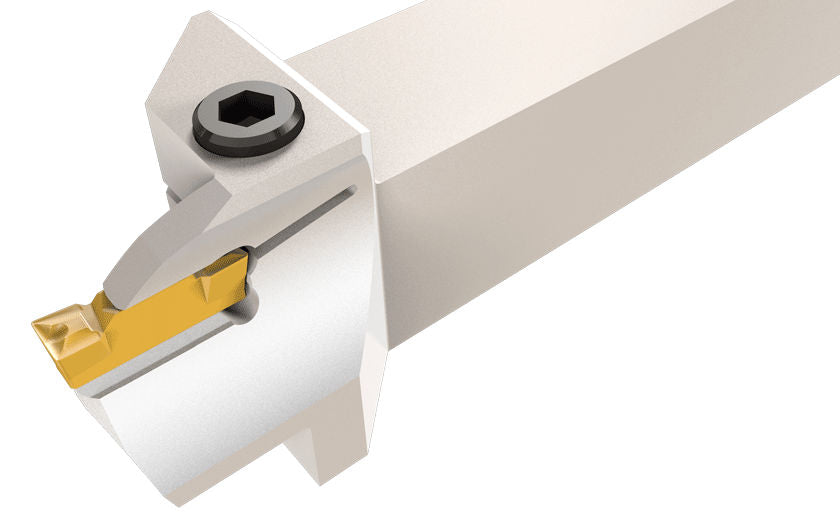

The Iscar 1x6 RH Face Grooving Holder with MPN 2500133 is designed for precision face grooving and turning applications. It features a right-hand direction and is suitable for various grooving dimensions. This holder is built for use with rectangular inserts, providing versatility in machining tasks.

• Min groove diameter of three point seven four inches
• Max groove diameter of five point one two inches
• Max groove depth of one point two six inches

Product Highlights

The Iscar face grooving holder is essential for achieving precise grooves in various materials, ensuring efficiency in turning processes.

Product Information

Standard Information

• Brand: Iscar
• Application: Face Grooving and Turning

Technical Specifications

• Min. Groove Diameter: 3.7400 inches
• Max. Groove Diameter: 5.1200 inches
• Max Groove Depth: 1.2600 inches
• Insert Width: 0.1970 inches
• Shank Height: 1.0000 inches
• Shank Width: 1.0000 inches
• Overall Length: 6.0000 inches
• Direction: Right
• System: Heliface
