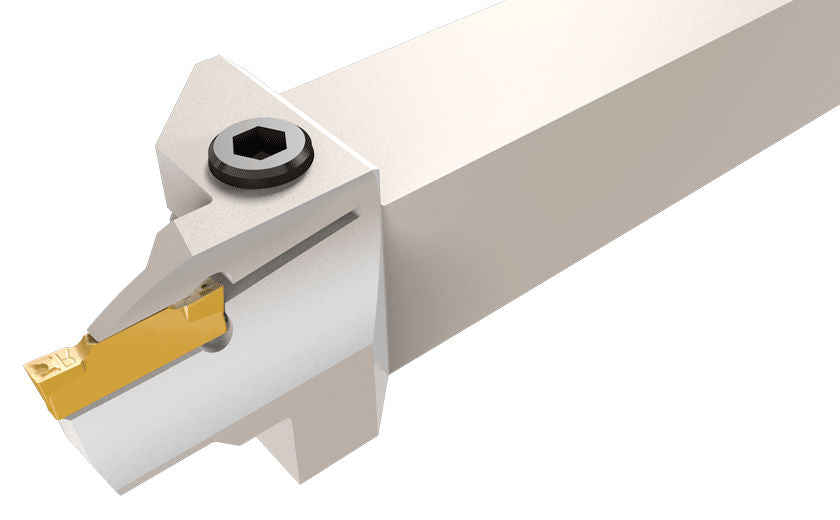

Iscar 2500093 Iscar 1x6 RH Face Grv Holder W.118 1.50-1.89 Tmax.470

Product Description

The Iscar 1x6 RH Face Grooving Holder with MPN 2500093 is designed for precision in face grooving and turning applications. It is a robust tool ideal for handling various groove diameters efficiently.

• Min Groove Diameter: 1.5000 inches
• Max Groove Diameter: 1.8900 inches
• Max Groove Depth: 0.4700 inches

Product Highlights

This holder is engineered to work with rectangular inserts, making it versatile for different machining tasks. Its right direction of use and specific dimensions are tailored for effective performance in face grooving.

Product Information

Standard Information

• Brand: Iscar
• Part Number: HFHR-25.4-38-3T12

Technical Specifications

• Insert Width: 0.1180 inches
• Shank Height: 1.0000 inches
• Shank Width: 1.0000 inches
• Overall Length: 6.0000 inches
• Direction: Right
• Application: Face Grooving and Turning
• System: Heliface
• Max. Groove Depth: 0.4700 inches
• Max. Groove Diameter: 1.8900 inches
• Min. Groove Diameter: 1.5000 inches
