Iscar 2302616 Indexable Slotting Cutter 3.937 in 10T

Product Description

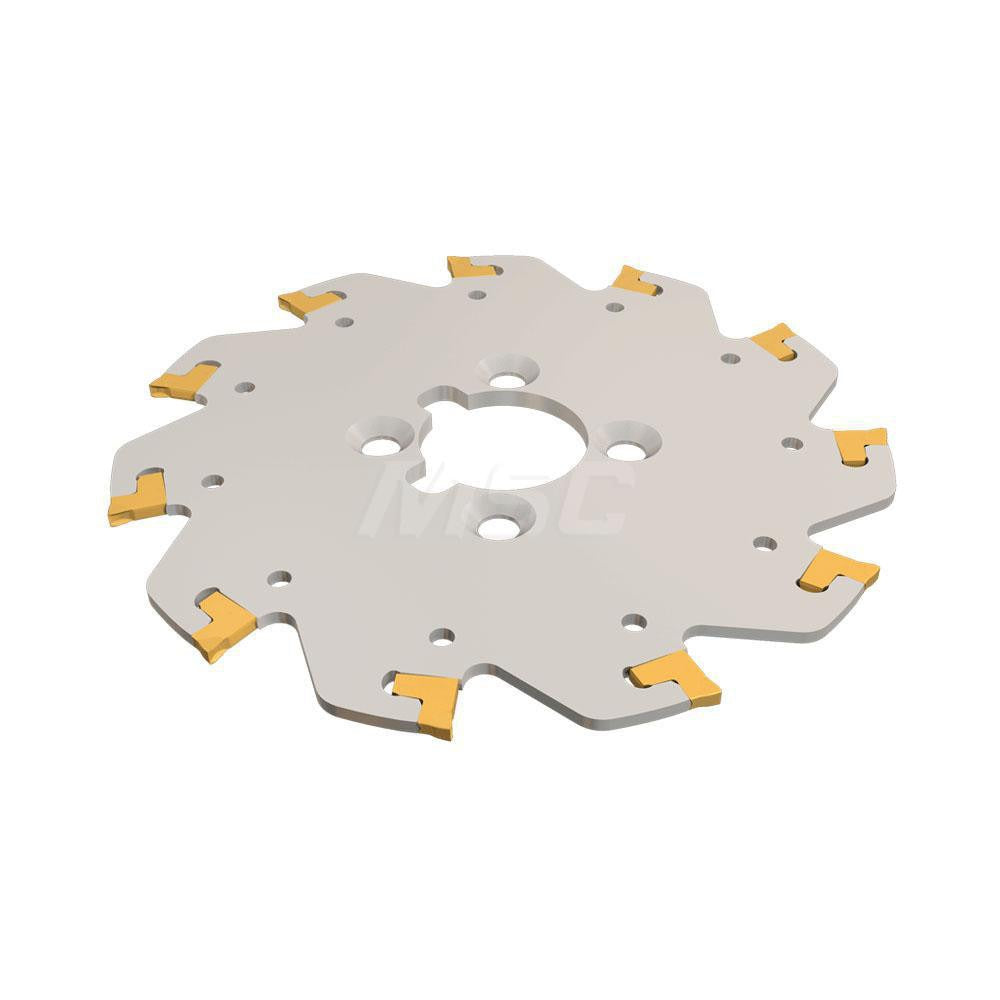

The ISCAR 2302616 is an indexable slotting cutter from the TangSlit (TGSF) series, designed for milling slot and groove operations on metalworking machinery. This cutter body accepts TANG-style inserts secured by a clamp-type holding method, providing repeatable edge positioning across 10 straight teeth. It mounts via an arbor hole connection with a 1-inch bore diameter and is rated to a maximum spindle speed of 800 RPM. The 3.937-inch cutter diameter and 0.63-inch cutting width make it suited for precise, consistent slot milling in production environments. Licensed machinists and CNC mill operators are the primary installers and users of this tooling body.

The ISCAR 2302616 is intended for use in horizontal and vertical milling machines configured for slot or groove cutting in metalworking applications. Its straight-tooth geometry and 1.181-inch maximum depth of cut support controlled chip evacuation in ferrous and non-ferrous workpiece materials. The TGSF toolholder style is compatible with standard arbor setups used in both job-shop and production-floor environments. This cutter body is a component-level tool that is reused across multiple insert generations, reducing per-operation tooling cost when inserts are indexed or replaced on schedule.

Key Features

• 3.937-inch cutter diameter with 0.63-inch cutting width for precise slot milling
• 10 straight teeth with clamp-type insert retention for secure, repeatable indexing
• Arbor hole connection with 1-inch bore diameter and 1.535-inch hub diameter
• Maximum depth of cut of 1.181 inches for deep slot capability
• Rated to 800 RPM maximum spindle speed
• Compatible with a broad range of TANG insert grades and geometries for application flexibility

Compatibility

Compatible insert styles include TAG N1.4C, TAG N1.4J, TAG N1.6C, TAG N1.6J, TAG N2.4C, TAG N2A, TAG N2C, TAG N2J, TAG N2JS, TAG N2JT, TAG N2LF, TAG N2UT, TAG N3A, TAG N3CB, TAG N3LF, TAG N3UT, TAG N4A, TAG N4UT, TAG N5UT, and TAG N6UT. All inserts must be TANG-style geometry; confirm insert dimensions match cutter body pocket specifications before ordering.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the milling machine spindle is fully de-energized and locked out before mounting or dismounting the cutter body. The arbor, spacers, and draw bolt should be inspected for wear and proper fit to the 1-inch bore before assembly. Do not exceed the 800 RPM maximum spindle speed rating; confirm feed rate and depth-of-cut parameters in the machine program before initiating a cut.
