Iscar 2302255 Tang-grip Tgfh Indexable Cutoff Blade

Product Description

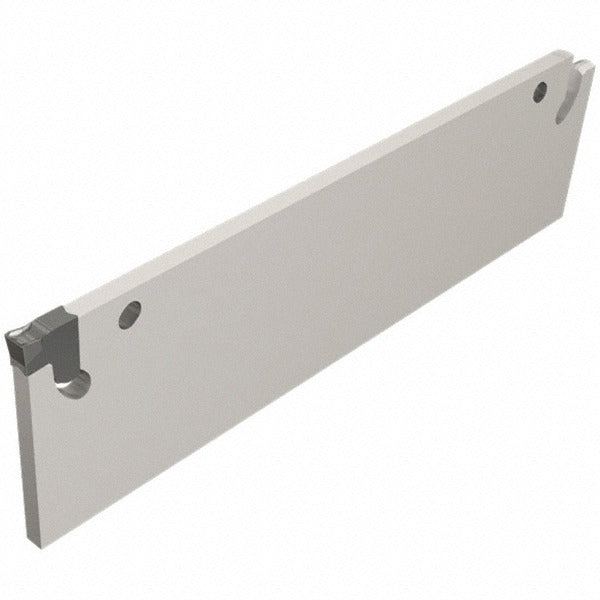

The ISCAR 2302255 is a single-end, neutral-cutting Tang-Grip TGFH indexable cutoff blade designed for grooving, parting, and turning operations on CNC lathes and turning centers. The blade measures 0.59 inches high, 1.65 mm wide, and 58 mm in overall length, with a 1.80 mm insert width. It uses a clamp-style insert holding method and accepts a range of Tang-Grip TAG series inserts. At 0.044 pounds, it is a lightweight, precision-ground blade built for tight-tolerance cutoff and groove work in production and job-shop environments. Machinists and CNC operators are the primary installers of this tooling component.

The ISCAR 2302255 suits grooving, parting, and turning applications on CNC lathes and turning centers in both production and job-shop settings. It delivers a maximum depth of cut of 0.4528 inches (11.50 mm) and a cutting height of 0.4803 inches (12.20 mm). The blade accepts insert widths ranging from 1.80 mm to 2.40 mm. It conforms to ISO 13399 tooling data standards, making it compatible with modern CAM and tool management software. Compatible insert styles include TAG N-A, TAG N-C/W/M, TAG N-J/JS/JT, TAG N-LF, TAG N-UT, TAG R/L-C, and TAG R/L-J/JS series geometries.

Key Features

• Single-end neutral cutting direction for straightforward grooving and parting setups
• TGFH blade style in the Tang-Grip series with clamp-style insert retention
• Maximum depth of cut of 0.4528 inches (11.50 mm) for deep groove and parting applications
• Accepts insert widths from 1.80 mm to 2.40 mm for geometry flexibility
• Conforms to ISO 13399 tooling data standards
• Lightweight at 0.044 pounds for use in gang tooling and multi-tool turret setups

Compatibility

Compatible inserts include: TAG L3C-15D, TAG L3C-6D, TAG L3J-15D, TAG L3J-6D, TAG L3JS-6D, TAG N3A, TAG N3C, TAG N3CB, TAG N3J, TAG N3JS, TAG N3JT, TAG N3LF, TAG N3M, TAG N3UT, TAG N3W, TAG R3C-15D, TAG R3C-6D, TAG R3C-8D, TAG R3J-6D, and TAG R3JS-6D. Insert seat size is 1.65 mm.

Installation Notes
