Iscar 2301705 Indexable Grooving Blade 1.5 in Right Hand

Product Description

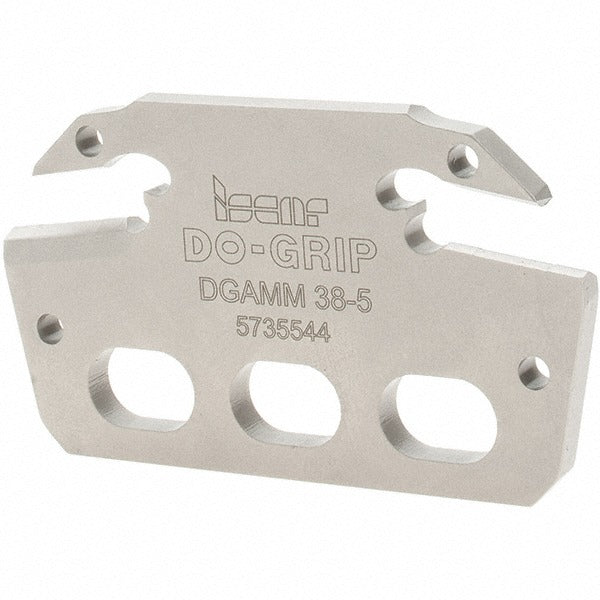

The ISCAR 2301705 is a right-hand indexable grooving blade from the Do-Grip series, designed for grooving, parting, and turning operations on CNC lathes and turning centers. The blade measures 1.5 inches in height and 2.54 inches in overall length, with a blade width of 0.157 inches and a cutting height of 1.092 inches. It accepts a wide range of DGN and DGR-style inserts, giving machinists flexibility across multiple insert geometries and chipbreaker styles. Manufactured to ISO 13399 standards, this blade is suited for production turning environments where accurate groove widths and reliable insert indexing are required. Toolroom technicians and CNC setup personnel are the typical end users.

This blade is used in turning and grooving applications across general machining, production shops, and toolroom environments. The DGAMM blade style supports external grooving and parting operations. It is appropriate for both roughing and finishing groove passes within the supported width range of 0.189 inches minimum to 0.197 inches maximum. Its right-hand cutting direction suits standard lathe spindle configurations. The Do-Grip system is widely used in high-volume turning applications where repeatable insert seating and quick changeouts reduce downtime.

Key Features

• Right-hand cutting direction for standard lathe spindle setups
• Blade style DGAMM with 1.5-inch blade height and 0.157-inch blade width
• Supports groove widths from 0.189 inches minimum to 0.197 inches maximum
• 2.54-inch overall length with 1.092-inch cutting height
• Compatible with a broad range of DGN, DGNC, DGNM, DGR, and DGL insert families
• Manufactured to ISO 13399 tooling interface standards

Compatibility

Compatible insert styles include DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGN-LF/LFT, DGN-P, DGN-UT/UA, DGN-WP, DGN-Z, DGR/L-C, DGRC/LC-C, DGR/L-J/JS, DGR-P, DGR-WP, and DGR-Z/ZS. Specific compatible inserts include DGL 1001J-8D, DGL 1400JS-15D, DGL 1402J-8D, DGL 2200JS-15D, DGL 2200JS-6D, DGL 2202C-6D, DGL 2202J-6D, DGL 3100JS-15D, DGL 3100JS-6D, DGL 3102C-15D, DGL 3102C-6D, DGL 3102J-15D, DGL 3102J-6D, DGL 4003C-4D, DGL 4003J-4D, DGL 5003C-4D, DGL 5003J-4D, and DGL 630.

Installation Notes

Installation should be performed by a qualified machinist or CNC toolroom technician with the machine powered down and the spindle locked before any tooling changes. The blade should be seated securely in a compatible tool block or holder before tightening to the manufacturer-specified procedure. Verify insert style and seat size compatibility before indexing or replacing inserts. Follow applicable shop safety procedures and consult the tooling system documentation for proper clamping and torque guidance.
