Iscar 2301242 Indexable Cutoff Blade Double End Neutral

Product Description

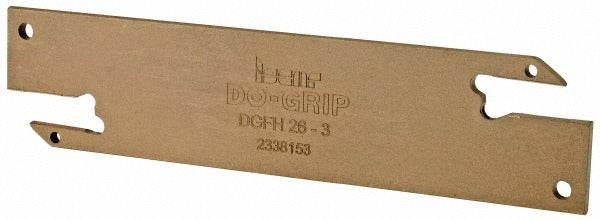

The ISCAR 2301242 is a double-end neutral indexable cutoff blade designed for grooving, parting, and turning operations on CNC lathes and turning centers. Built to the DGFH blade style, it measures 26 mm (1.0236 inches) in blade height, 2.4 mm (0.0945 inches) in blade width, and 110 mm (4.3307 inches) in overall length. The self-grip insert-holding method locks DG.1 and DG.3 series inserts securely without fasteners, reducing setup time. The double-end configuration allows the blade to be flipped for extended service life. Conforms to ISO 13399 cutting tool data standards.

This blade is suited for precision metal-turning applications in production machining environments, including job shops and manufacturing facilities running repetitive parting and grooving cycles. It supports a maximum workpiece diameter of 1.54 inches and accepts inserts ranging from 3.00 mm (0.1181 inches) to 3.18 mm (0.1252 inches) in width. Typical applications include parting off bar stock, external grooving, and profile turning on steel, stainless steel, and other machinable alloys. It is part of the ISCAR Do-Grip and Heli-Grip series tooling system.

Key Features

• Double-end design extends blade service life by providing two usable cutting positions
• Self-grip insert clamping holds DG.1 and DG.3 style inserts without additional fasteners
• Neutral cutting direction suits standard right-hand turning setups
• Compatible with Do-Grip and Heli-Grip insert series for broad insert availability
• Conforms to ISO 13399 for standardized tool assembly data integration
• Cutting height of 21.40 mm (0.8425 inches) provides clearance for parting and grooving cycles

Compatibility

Compatible with DG.1 and DG.3 series inserts within the ISCAR Do-Grip and Heli-Grip tooling systems. Accepts inserts with a minimum width of 3.00 mm and a maximum width of 3.18 mm. Catalog reference: DGFH 26-3.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. The machine spindle must be fully stopped and the turret or tool post de-energized before changing or indexing blades. Confirm insert seating in the self-grip pocket before resuming cuts. Follow the machine manufacturer and applicable shop safety procedures when setting tool offsets and testing at reduced feed rates.
