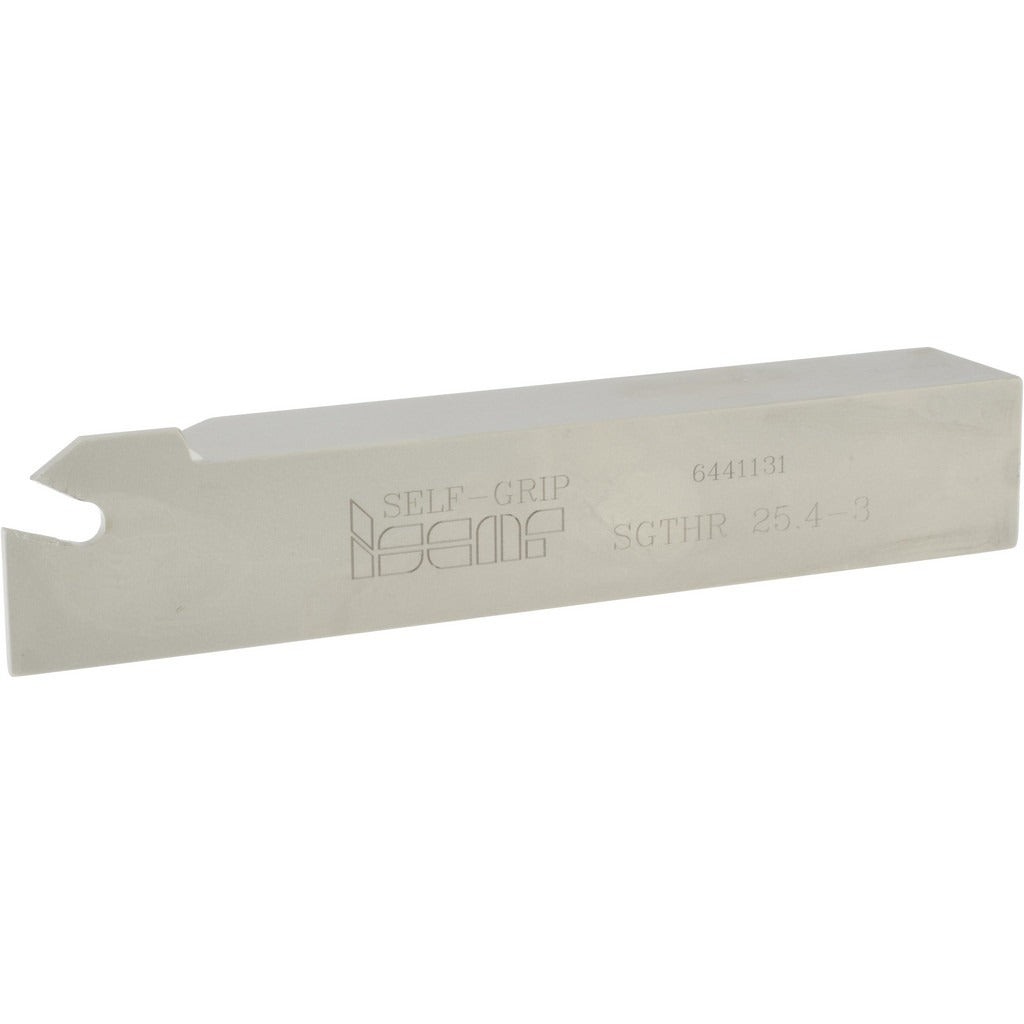

Iscar 2300934 Indexable Cutoff Toolholder Right Hand

Product Description

The ISCAR 2300934 is a right-hand indexable cutoff toolholder designed for parting and grooving operations on CNC lathes and turning centers. Built on the Self Grip series platform, it uses a self-gripping insert-holding method that secures GTN 3.. and GTR 3.. series inserts without additional clamping hardware. The toolholder accepts a minimum insert width of 0.122 inches and handles a maximum depth of cut of 0.98 inches. The 1 x 1 inch square shank fits standard toolpost and turret mounting positions. Licensed machinists and CNC operators install this holder in production and job-shop turning applications.

This toolholder is suited for cut-off work on workpieces up to 2.05 inches in diameter. The SGTH style head and 5.9-inch overall length make it compatible with standard 1 x 1 inch shank toolpost setups on small to mid-size lathes. It is commonly used in high-volume production environments where repeatable parting performance is required on steel, aluminum, and similar turned materials. The Self Grip series design allows for fast insert indexing, minimizing downtime during production runs.

Key Features

• Self Grip insert-holding method — no additional clamping screws required for GTN 3.. and GTR 3.. inserts
• Maximum depth of cut of 0.98 inches for parting and grooving operations
• Handles workpieces up to 2.05 inches in diameter
• 1 x 1 inch square shank for standard toolpost and turret mounting
• SGTH toolholder style with 5.9-inch overall length
• Right-hand orientation; coolant-through feature not included

Compatibility

Compatible with GTN 3.. and GTR 3.. series indexable inserts. Toolholder style is SGTH; cross-reference manufacturer number SGTHR/L 25.4-3. Designed for use with 1 x 1 inch shank toolpost and turret systems on standard CNC and manual turning equipment.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before mounting or removing the toolholder. Seat the shank fully in the toolpost or turret block and torque the clamping fasteners according to the machine manufacturer specifications. Confirm insert seating and edge height alignment before returning the machine to service.
