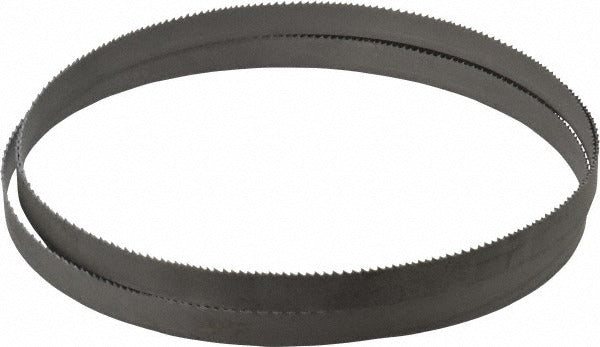

Irwin Blades 88517IBB51650 Welded Bandsaw Blade

Product Description

The IRWIN BLADES 88517IBB51650 is a welded bi-metal bandsaw blade designed for cutting metal and other tough materials in professional shop and industrial environments. The blade runs 65 inches in total length and measures 0.5 inches wide by 0.025 inches thick. It features a variable pitch tooth pattern ranging from 10 to 14 TPI, which helps reduce vibration and harmonics during the cut and delivers cleaner results across a range of material thicknesses. The high-speed steel M42 tooth material provides heat and wear resistance for extended blade life under continuous-duty conditions. Licensed tradespeople and shop technicians are the typical installers.

This blade is suited for use in vertical or horizontal bandsaw applications where variable pitch performance is required. The 10 to 14 TPI range makes it effective on structural stock, tubing, solid bar, and similar workpieces in fabrication or maintenance settings. The straight tooth form and toothed edge are designed for contour-free, linear cutting passes. At 0.1875 pounds, the blade is lightweight for handling and loading onto the saw.

Key Features

• Bi-metal construction with M42 high-speed steel teeth for extended cutting life
• Variable pitch 10 to 14 TPI reduces vibration and improves cut quality across material thicknesses
• 65-inch welded length for direct drop-in installation on compatible bandsaws
• 0.5-inch blade width and 0.025-inch thickness for stable tracking
• Straight tooth form suited for linear cutting applications

Compatibility

Designed as a welded replacement bandsaw blade for bandsaws accepting a 65-inch blade length with a 0.5-inch width. Verify your saw's blade length, width, and thickness specifications before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with bandsaw blade handling and tensioning procedures. Power down and lock out the saw before removing the old blade or fitting the new one. Wear cut-resistant gloves when handling the blade. Follow the saw manufacturer's tensioning and tracking guidelines to ensure proper blade seating and safe operation.
