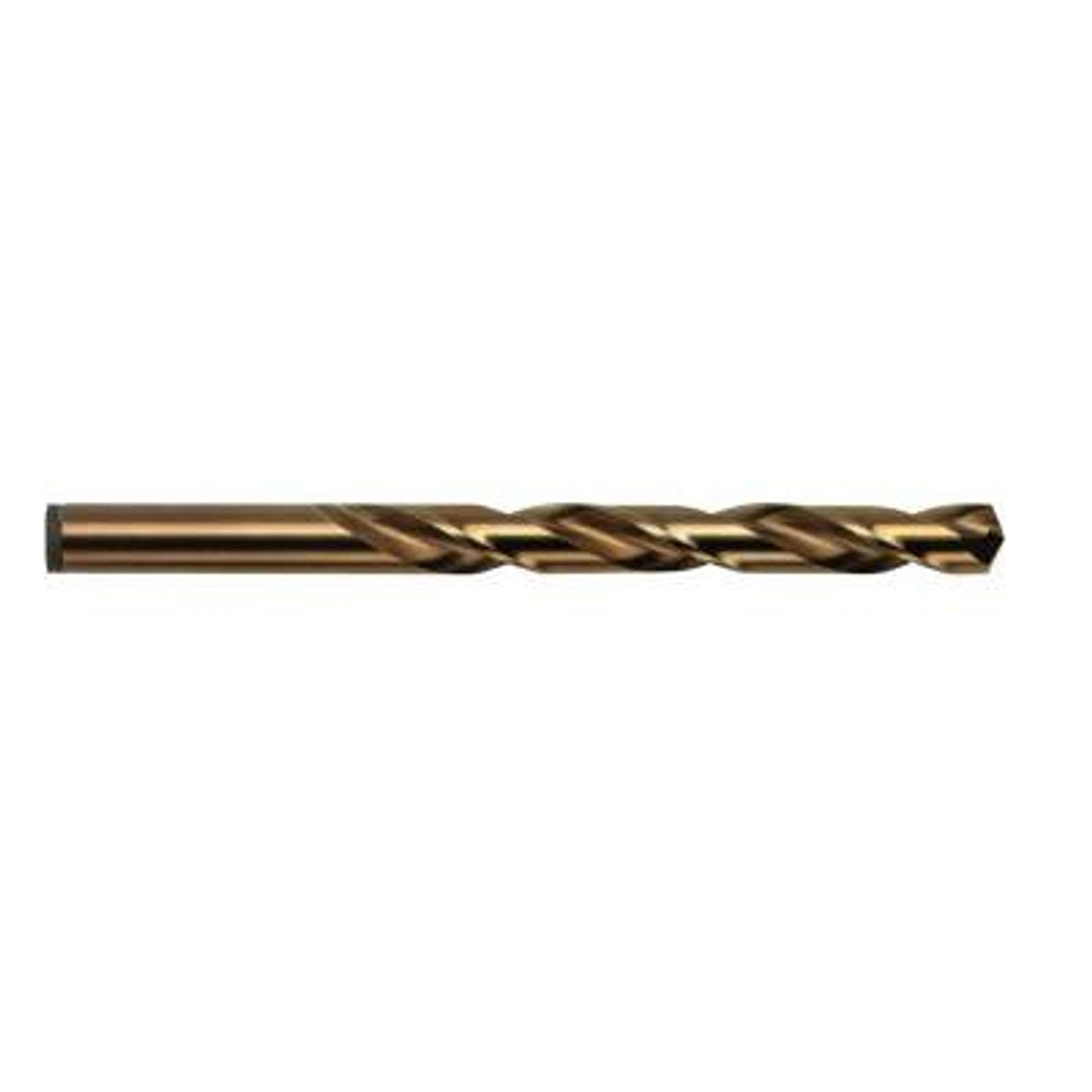

IRWIN 63113ZR DRL 13/64 COB JL 135' BULK

Product Description

The IRWIN 63113ZR is a heavy-duty jobber length drill bit. It is designed for drilling into tough materials like hard steel, stainless steel, and titanium. With a size of thirteen sixty-fourths inches, this drill bit features a spiral flute for effective chip removal. The overall length of the bit is three and five-eighths inches, with a cutting depth of two and seven-sixteenths inches, making it suitable for various drilling applications. This drill bit is made from M35 HSS-Co 5 steel, providing high durability and resistance against wear.

• Constructed from M35 5% cobalt high-speed steel
• Spiral flute design for faster chip ejection
• 135-degree split point for easy penetration

Product Highlights

The IRWIN 63113ZR drill bit is ideal for tough metal drilling and works well with high-tensile strength materials.

Product Information

Standard Information

• Brand: IRWIN INDUSTRIAL TOOL COMPANY
• UPC: 042526631139

Technical Specifications

• Drill Size - Fraction: 13/64 in
• Drill Size - Decimal Inch: 0.2031 in
• Overall Length: 3-5/8 in
• Cutting Depth: 2-7/16 in
• Flute Length: 2-7/16 in
• Flute Type: Spiral
• Point Type: Split
• Point Angle: 135 deg
• Shank Type: Straight
• Shank Size: 13/64 in
• Cutting Direction: Right Hand
• Cutting Edge Material: M35 HSS-Co 5
• Finish: Gold Oxide
• Applicable Materials: Hard Steel, Stainless Steel and Titanium
• Series: 631
