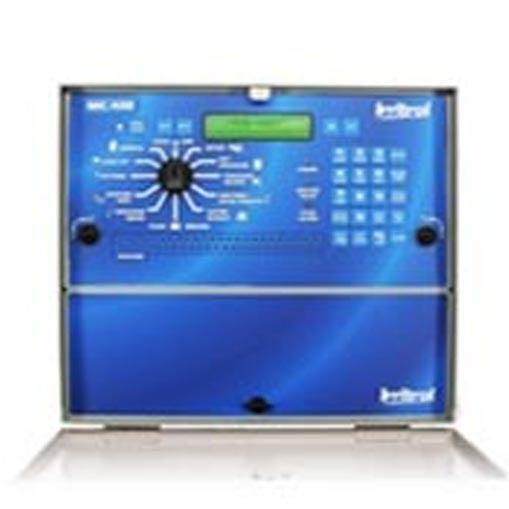

Irritrol MC-18E MC-E 18-Station Controller

Product Description

The Irritrol MC-18E is an 18-station irrigation controller suitable for both indoor and outdoor use. It is designed to provide reliable control over commercial irrigation systems. The controller is housed in a vandal-proof steel cabinet, ensuring durability and security. It features eight independent programs, allowing for scheduling flexibility. Additionally, it includes advanced flow monitoring capabilities. This model is compatible with the Irritrol Climate Logic Wireless Weather Sensing System, providing automatic adjustments based on current weather conditions.

• Rugged, lockable, vandal-proof steel cabinet
• Eight independent scheduling programs
• Advanced flow monitoring functionality

Product Highlights

Product Information

Standard Information

• Application: For indoor or outdoor
• Display: Backlit LCD display

Technical Specifications

• Stations: 18
• Global Water Budget: 0% to 255% in 1% increments
• Maximum Output per Station: 24V AC, 1.24 amps
• Maximum Output to Valves: 24V AC, 1.68 amps (including master valve)
• Station Run Times: 0-59 seconds in 1-second increments, 1 minute to 9:59 hours in 1-minute increments
• Transformer Input: 120V AC, 60 Hz
• Transformer Output: 24V AC, 2.08 amps (50 VA)
• Watering Schedule: Any day of the week, Odd or Even date watering, Day intervals from 1-60 days
• Input Voltage: 120 V
• Input Frequency: 60 Hz
• Mounting: Wall mounting
• Width: 14.25 inches
• Depth: 4.75 inches
• Height: 12 inches
