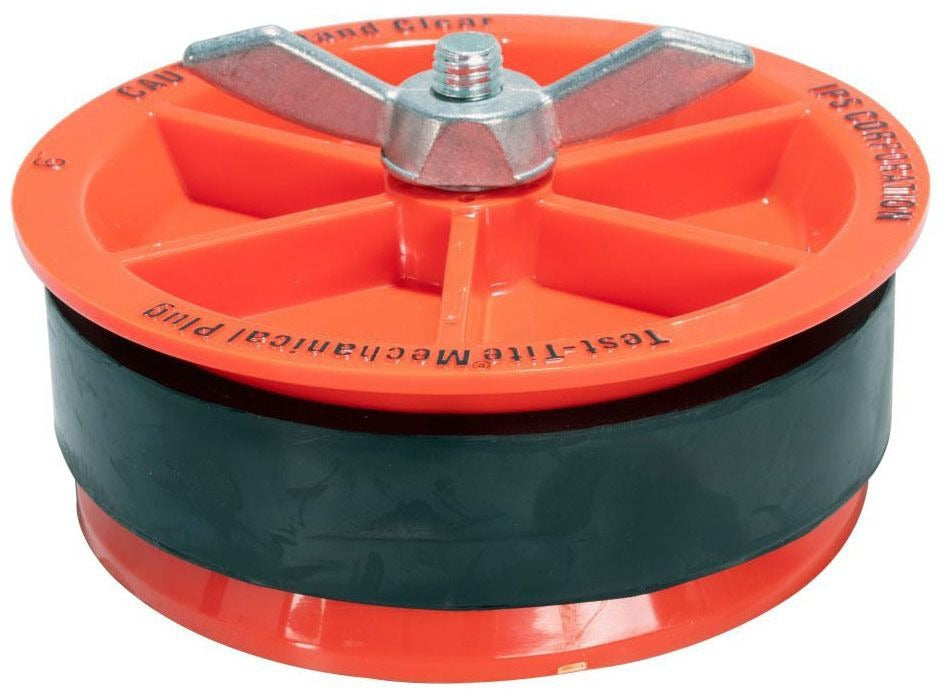

Ips 83598 Twist-Tite Mechanical Test Plug (8 Inch)

Product Description

IPS 83598 is a Twist-Tite mechanical test plug designed to seal and test 8 inch DWV pipe. The plug uses high-impact ABS plates and a neoprene sealing gasket to form an airtight seal around pipe diameters 7.76 to 8.03 inches. It includes an oversized wingnut with wrench pad, a steel-plated screw and zinc nut for corrosion resistance, and is rated to 5 psig for air back pressure. Intended for end-of-pipe testing or temporary blocking, length is 8.4 in.

• High-impact ABS construction with steel-plated screw and zinc nut for corrosion-resistant hardware
• Neoprene sealing gasket provides an airtight seal for pipe diameters 7.76 to 8.03 in
• Oversized wingnut with wrench pad; rated maximum air back pressure 5 psig; length 8.4 in for end-of-pipe testing

Product Highlights

8 in ABS mechanical test plug for DWV piping; neoprene gasket; 5 psig rating; corrosion-resistant hardware

Product Information

Standard Information

• Brand: IPS
• Manufacturer Part Number: 83598
• Country of Origin: United States
