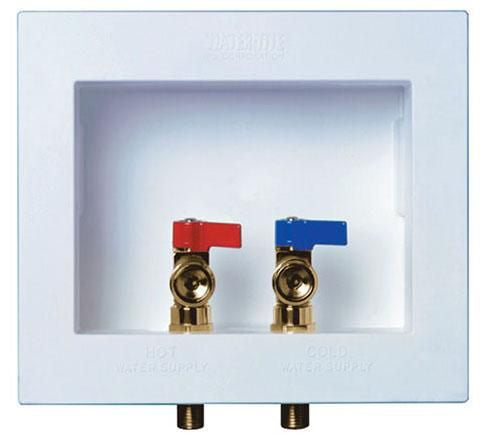

IPS 82002 Washing Machine Outlet Box Dual Drain 1-Piece

Product Description

The IPS 82002 is a dual drain washing machine outlet box designed for reliable performance. This one-piece unit features a half-inch Wirsbo connection. The outlet box is sized at eight and one-fourth inches in width, three and three-fourths inches in depth, and six and one-eighth inches in height. An included faceplate measures ten and three-sixteenths inches in width and eight and thirteen-sixteenths inches in height.

• Features a quality quarter-turn brass valve
• Includes a raised drip guard and extended mounting flange
• Installed with oversized KO for easy drainage connections

Product Highlights

This outlet box is built with a back that rests against the wall for stability. It has forward-mounted valves for simple on/off access and can be inverted for versatility in mounting options.

Product Information

Standard Information

• Manufacturer: IPS
• UPC: 01218182002
• UNSPSC: 47111500

Technical Specifications

• Box Size: 8.25 inches width x 3.75 inches depth x 6.125 inches height
• Face Plate Size: 10.1875 inches width x 8.8125 inches height
• Pipe Connection: 0.5 inches Wirsbo
• Valve Details: 1/4 turn brass valve
• Applicable Standard: ASME A112.18.1, UPC
