Ips 62286 Toe Touch Waste Overflow Half Kit Champagne Bronze

Product Description

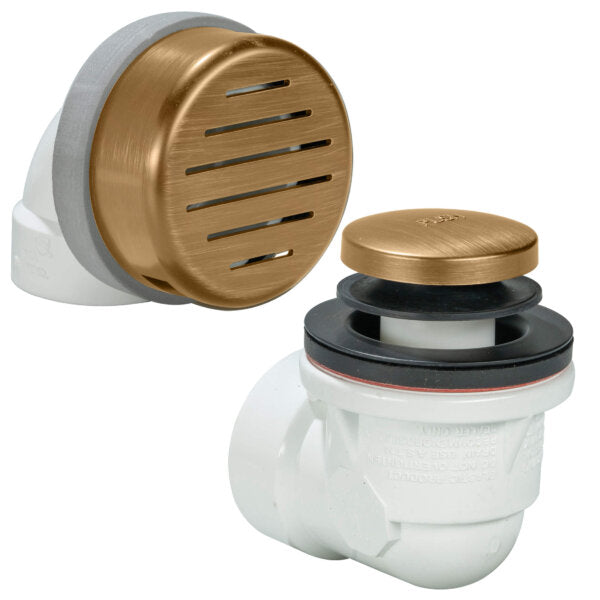

The IPS 62286 is a PVC toe touch waste and overflow half kit designed for bathtub drain system installation and replacement. This half kit centers on a high-flow-capacity slotted overflow plate rated at 7 GPM, which outpaces the typical tub spout output of 5 to 6 GPM for faster drainage. The toe touch stopper lets the installer plug and unplug the tub drain without tools. A push-on overflow cover plate secures to the overflow elbow with a single push, seating flush against the tub wall. A thin gasket is included for use with thick-walled tub materials such as marble. The test cap allows the waste and overflow system to be pressure-tested before closing the wall. This kit is finished in Champagne Bronze.

The IPS 62286 is intended for residential bathtub applications in both new construction and retrofit installations. It is compatible with Schedule 40 PVC piping and is suited for standard tub drain rough-in configurations. The included test cap makes this kit practical for projects where a pressure test of the drain system is required before inspection. Plumbers and finish plumbing contractors are the primary installers for this type of assembly.

Key Features

• High-flow slotted overflow plate rated at 7 GPM for faster tub drainage
• Toe touch stopper for tool-free plug and unplug of the tub drain
• Push-on overflow cover plate for quick, tool-free installation against the tub wall
• Thin gasket included for thick-walled tubs such as marble
• Test cap included for pressure testing the waste and overflow system
• Champagne Bronze finish for decorative compatibility

Compatibility

Compatible with Schedule 40 PVC piping. Designed as an OEM-style replacement or new-installation half kit for standard residential bathtub waste and overflow systems. Model number ABA2239CBCSHF is associated with this assembly per supplier specifications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and confirm the tub area is dry before beginning work. Pressure-test the waste and overflow assembly using the included test cap prior to closing any access panels or walls. Do not overtighten PVC fittings; hand-tight plus a quarter turn is the standard practice for push-fit and solvent-weld PVC connections.

Technical Specifications

• Model Number: ABA2239CBCSHF
• Pipe Compatibility: Schedule 40 PVC
• Overflow Plate Flow Rate: 7 GPM
• Stopper Type: Toe Touch
• Finish: Champagne Bronze
• Gasket Included: Yes, thin gasket for thick-walled tubs
• Test Cap Included: Yes
• Strainer and Stopper Material: Brass

Standard Information

• Brand: IPS
• Manufacturer Part Number: 62286
