Ips 62282 Pvc Sch 40 Toe Touch Waste Overflow Half Kit

Product Description

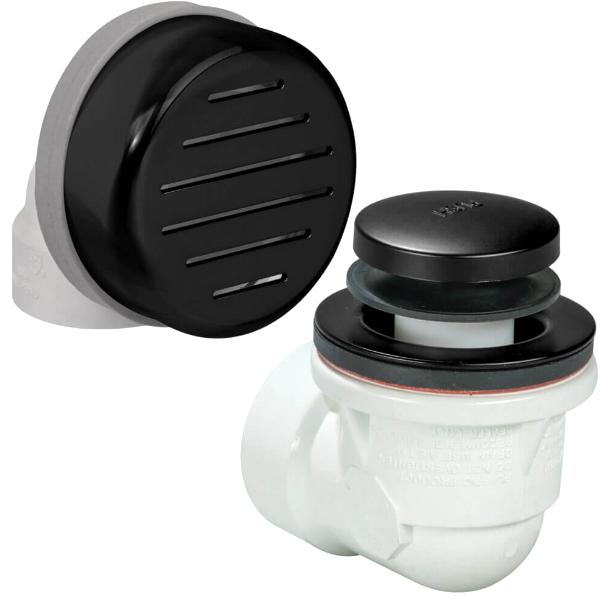

The IPS 62282 is a PVC Schedule 40 toe touch waste and overflow half kit designed for bathtub drain system installation and replacement. Finished in matte black, this half kit includes a high-flow overflow cover plate rated at approximately 7 GPM, which exceeds the typical tub valve output of 5 to 6 GPM. The push-on overflow cover plate secures directly to the overflow elbow without tools, providing a snug fit against the tub wall. A toe touch stopper allows the tub drain to be opened and closed with simple foot pressure. Licensed plumbers install this type of assembly during new construction rough-in or retrofit bath drain work.

This kit is suited for residential bathtub waste and overflow applications using Schedule 40 PVC piping. It works with existing PVC rough-in piping and is appropriate for standard tub installations as well as thick-walled tub surrounds such as marble, thanks to the included thin supplemental gasket. A test kit is included, allowing the installed waste and overflow system to be pressure tested before the tub is put into service. The kit is part of a broader product family available in full, half, rough/trim, and finish configurations across multiple finishes.

Key Features

• High-flow overflow cover plate rated at approximately 7 GPM, compared to 5 to 6 GPM for a typical tub valve
• Push-on overflow cover plate installs tool-free by pressing onto the overflow elbow
• Toe touch stopper allows foot-operated drain plugging and unplugging
• Compatible with Schedule 40 PVC piping
• Includes an extra thin gasket for use with thick-walled tub materials such as marble
• Includes a test kit for pressure testing the installed waste and overflow system

Compatibility

Designed for use with Schedule 40 PVC waste and overflow piping in residential bathtub drain installations, including both new construction and retrofit applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and ensure the tub is empty before beginning work. The overflow cover plate is push-on and requires no tools to seat against the overflow elbow. Use the included test kit to pressure test the system after installation and before closing up the access panel or finishing the surround.

Technical Specifications

• Model Number: ABA2239MBCSHF
• Pipe Compatibility: Schedule 40 PVC
• Overflow Flow Rate: Approximately 7 GPM
• Finish: Matte Black
• Stopper Type: Toe Touch
• Kit Type: Half Kit with Test Kit

Standard Information

• Brand: IPS
• Manufacturer Part Number: 62282
