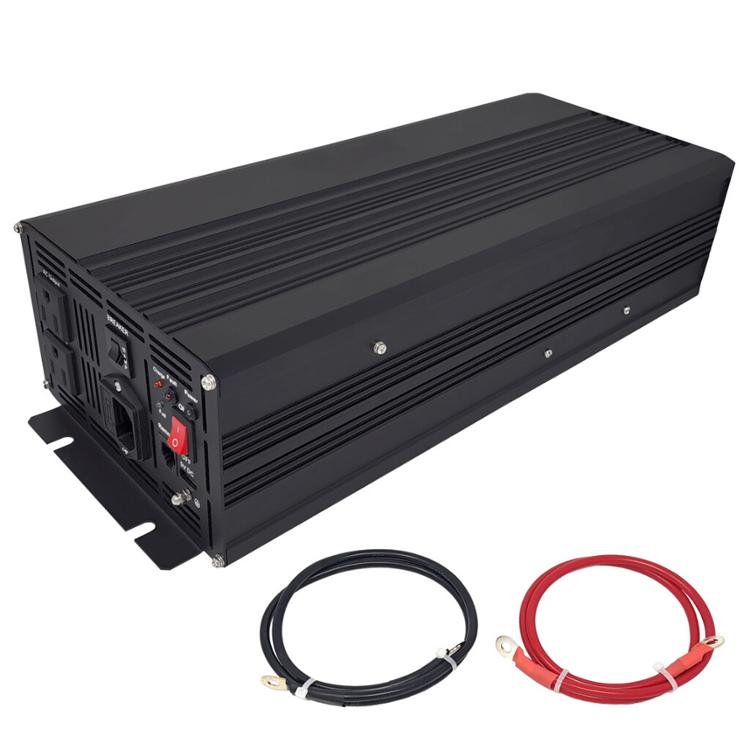

Ips 22700 Sump Pump Battery Backup 2000W Pure Sine Wave

Product Description

The IPS 22700 is a 2000-watt sump pump battery backup power system designed to keep basement drainage running during AC power outages. Operating as a pure sine wave inverter, the unit outputs 120 VAC from a 12 VDC battery source, closely replicating utility-grade power so primary sump pumps run without hesitation. The system handles up to two primary sump pumps simultaneously, provided the combined current draw does not exceed 16.6 amps. A built-in 10-amp charger automatically recharges and maintains the connected battery whenever AC power is restored. Battery is not included. Model number FSAINV2000.

This unit is intended for residential basement sump pump installations where utility power interruptions create flood risk. It is also suitable as a general-purpose power inverter for other equipment requiring battery-backed 120 VAC power. Licensed electricians and plumbing contractors typically handle permanent installations, while experienced service technicians handle battery maintenance and system commissioning. The system is well-suited to applications where a pure sine wave output is required for motor-driven pump loads.

Key Features

• Pure sine wave 120 VAC output supports sensitive motor loads without waveform distortion
• 2000-watt continuous output capacity supports up to two primary sump pumps simultaneously
• Maximum combined current draw of 16.6 amps for dual-pump operation
• Automatic transfer from AC utility to battery power when outage is detected
• Automatic reversion to AC utility power when power is restored
• Built-in 10-amp charger rapidly recovers battery charge after extended outages
• Can function as a standalone power inverter for other backup power applications

Compatibility

Designed to power one primary sump pump up to 12.5 amps maximum, or two primary sump pumps with a combined current draw not exceeding 16.6 amps. A Floodstop Deep Cycle AGM Battery is recommended but not included.

Installation Notes

Power down and disconnect AC utility supply before servicing or connecting battery terminals. This system requires a compatible 12 VDC deep cycle AGM battery, purchased separately, and must be connected with appropriately rated DC cabling. Installation should comply with applicable NEC requirements for inverter and battery backup systems. Do not exceed the rated maximum current draw for single or dual pump configurations.

Technical Specifications

• Model Number: FSAINV2000
• Output Power: 2000 watts
• Output Voltage: 120 VAC
• Output Waveform: Pure Sine Wave
• Input Voltage: 12 VDC
• Maximum Current Draw (Dual Pump): 16.6 amps
• Maximum Current Draw (Single Pump): 12.5 amps
• Built-In Charger Output: 10 amps
• Battery: Not included

Standard Information

• Brand: IPS
• Manufacturer Part Number: 22700
