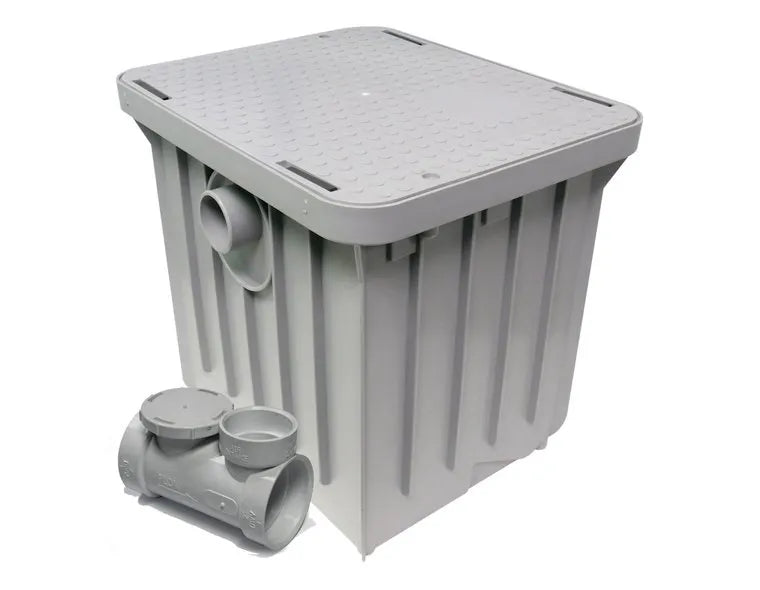

IPEX USA 100PLB Grease Trap 100 lb. 50 GPM

Product Description

The IPEX USA 100PLB grease trap is essential for capturing grease and solids to prevent plumbing clogs. This unit is made from strong thermoplastic and is ideal for commercial kitchens. It comes equipped with a flow control device and a patented baffle system for effective operation.

• Includes a 3 inch hub connection for easy installation.
• Offers a grease capacity of 100 pounds and a flow rate of 50 gallons per minute.
• Features a removable cover with airtight silicone seal for cleanliness.

Product Highlights

The IPEX USA 100PLB grease trap is designed for efficient grease management in high-volume environments.

Product Information

Standard Information

• Application: Grease Interceptors
• Capacity: 100 lb.

Technical Specifications

• Flow Rate: 50 GPM
• Connection Type: 3 inch Hub
• Overall Depth: 23.5 inches
• Overall Height: 23.5 inches
• Overall Width: 31.0 inches
• Unit Weight: 60 lbs
• Material: Plastic, Polypropylene
• Inlet Height: 18.5 inches
• Standards: PDI & MEA 160-08-E Approved, IAPMO Listed
