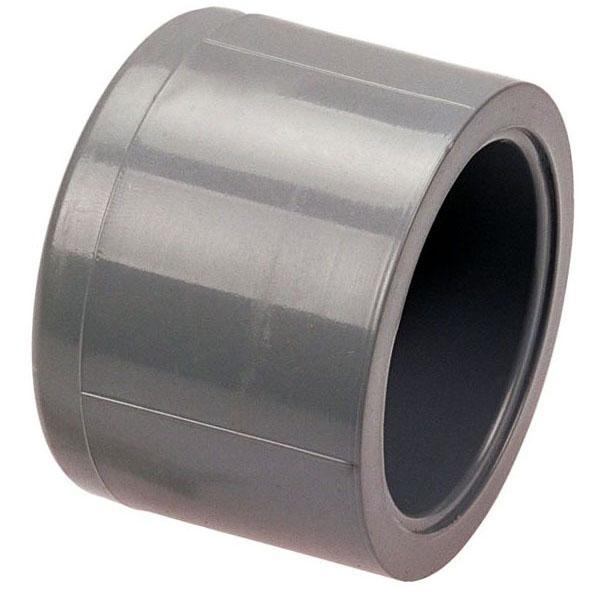

Ipex 9847012 Cpvc Schedule 80 Socket Cap 1-1/4 in

Product Description

The IPEX 9847012 is a 1-1/4 inch CPVC Schedule 80 socket cap designed for use in industrial and commercial piping systems that demand reliable chemical and corrosion resistance. Manufactured under the Corzan CPVC system, this cap meets strict dimensional and performance standards as part of a complete Pipe, Valves, and Fittings package from a single manufacturer. Corzan CPVC delivers superior resistance to oxidation, creep stress, and photodegradation, making it a proven alternative to carbon steel, stainless, and other metal piping materials in demanding service environments. Licensed plumbers and pipefitters working in chemical processing, industrial fluid handling, and potable water applications rely on this fitting for long-term, low-maintenance service.

This socket cap is suited for chemical process piping, industrial fluid systems, and potable water lines where metal fittings would be vulnerable to corrosion or electrochemical degradation. It is approved for potable water service as listed with NSF and CSA International. The Schedule 80 wall thickness provides additional pressure capability compared to Schedule 40, making it appropriate for higher-pressure industrial applications. Underground installations also benefit from Corzan CPVC's immunity to corrosive soil conditions and galvanic corrosion.

Key Features

• Schedule 80 CPVC construction for higher pressure ratings versus Schedule 40
• Exceptional resistance to acids, alcohols, alkalies, salt solutions, and halogens
• Smooth interior walls that resist rust, pitting, scaling, and corrosion for improved flow over service life
• Immune to electrochemical and galvanic corrosion, including damage from naturally corrosive soils
• NSF and CSA International listed for potable water service
• Lower thermal conductivity than metal piping, helping sustain service temperature more efficiently

Compatibility

Designed as an OEM-style component within the IPEX Corzan CPVC Schedule 80 piping system, compatible with standard 1-1/4 inch Schedule 80 CPVC socket-connect pipe and fittings used in industrial and chemical process piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes, including IPC and IFGC references for thermoplastic piping systems. Depressurize and drain the line completely before cutting into any existing system. Use only CPVC-rated solvent cement and primer appropriate for Schedule 80 fittings. Allow full cure time per the cement manufacturer's instructions before returning the line to service.

Technical Specifications

• Material: Corzan CPVC (Chlorinated Polyvinyl Chloride)
• Schedule: Schedule 80
• Connection Type: Socket
• Fitting Type: Cap
• Pipe Size: 1-1/4 inches
• Listings: NSF Listed, CSA International Listed for potable water

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9847012
