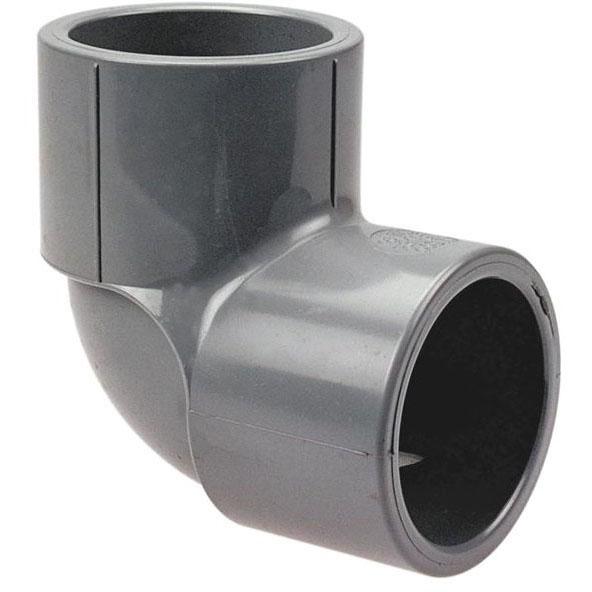

Ipex 9806060 Cpvc Sch 80 90 Degree Elbow 6 Inches

Product Description

The IPEX 9806060 is a 6-inch CPVC Schedule 80 90-degree elbow fitting with a female socket by female socket end connection. It is designed for solvent-cement joining in high-pressure, corrosion-resistant piping systems. Built to ASTM F439 and ANSI/NSF 14/61 standards, this elbow carries a pressure rating of 2000 psi at 73 degrees F and a temperature rating of 210 degrees F. The Corzan CPVC construction delivers exceptional mechanical strength across a wide temperature range, making it suitable for demanding industrial and commercial fluid-handling applications. Licensed plumbers and pipefitters typically install this fitting in process and infrastructure piping systems.

This elbow is suited for a broad range of industrial and commercial applications including chemical processing, chemical drainage, chilled water distribution, deionized water lines, industrial plating, and wastewater treatment systems. Its lightweight CPVC construction simplifies handling and reduces installation time in both above-ground and underground installations. The solvent-cement socket connection method produces a leak-free joint when properly prepared and joined per manufacturer instructions.

Key Features

• 90-degree directional change in 6-inch CPVC Schedule 80 piping runs
• Pressure rated to 2000 psi at 73 degrees F for high-demand systems
• Temperature rated to 210 degrees F for hot-process and hot-water service
• ASTM F439 material specification ensures dimensional and strength compliance
• ANSI/NSF 14/61 listed for potable water and chemical service
• Solvent-cement socket connections create a maintenance-free, leak-free bond

Compatibility

Designed as an OEM-style replacement and standard-fit component for 6-inch CPVC Schedule 80 piping systems built to ASTM F439 and ANSI/NSF 14/61 requirements in industrial, commercial, and chemical process installations.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with CPVC solvent-cement joining procedures. Depressurize and drain the system completely before cutting into any existing piping. Clean and prime mating pipe ends per applicable ASTM and manufacturer guidelines before applying solvent cement. Follow applicable IPC and local plumbing code requirements for support spacing and burial depth in underground installations.

Technical Specifications

• Fitting Type: 90 Degree Elbow
• Size: 6 inches
• Schedule: 80S
• End Connection: Female Socket x Female Socket
• Material: CPVC
• Material Specification: ASTM F439
• Applicable Standard: ANSI/NSF 14/61
• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Finish: Light Gray
• Weight: 8.38 pounds
• Packaging Quantity: 4 per carton
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9806060
