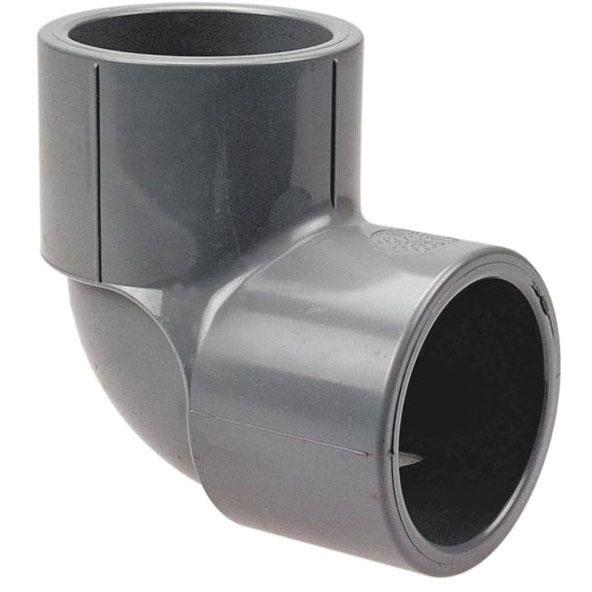

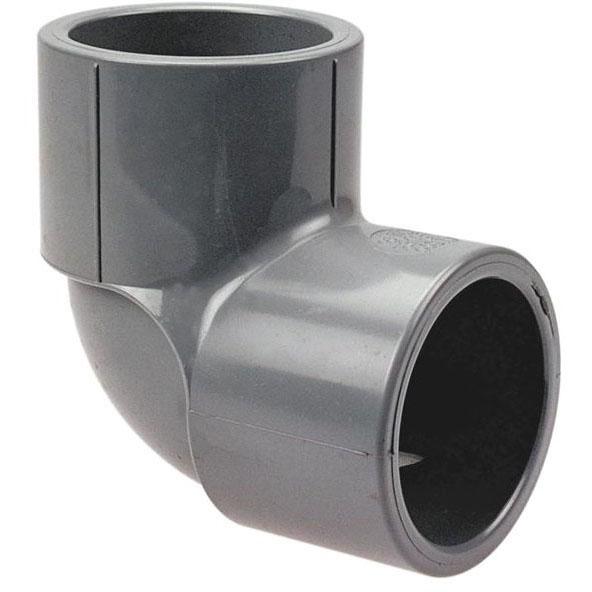

Ipex 9806040 Cpvc Schedule 80 90 Degree Elbow 4 Inches

Product Description

The IPEX 9806040 is a 4-inch CPVC Schedule 80 90-degree elbow fitting with a female socket by female socket end connection. It is manufactured from Corzan CPVC thermoplastic material to the ASTM F439 material specification and is rated for 2000 psi at 73 degrees F with a maximum temperature rating of 210 degrees F. The fitting is joined using solvent cement to create a leak-free connection in industrial and commercial piping systems. It is light gray in finish and meets ANSI/NSF 14/61 standards. Licensed plumbers and pipefitters install this fitting in demanding fluid-handling applications.

This elbow is suited for chemical processing, chemical drainage, chilled water distribution, deionized water lines, industrial plating, and wastewater treatment systems. Its CPVC construction provides excellent mechanical strength across a broad temperature range and outstanding resistance to corrosive media, making it appropriate for both above-ground and underground industrial service. Each carton contains 5 fittings.

Key Features

• 90-degree change of direction in 4-inch CPVC Schedule 80 piping systems
• Rated to 2000 psi at 73 degrees F for demanding pressure applications
• Maximum service temperature of 210 degrees F
• Solvent cement socket connection for a reliable, leak-free joint
• Meets ANSI/NSF 14/61 and ASTM F439 standards
• Corzan CPVC material offers superior hydraulic performance and corrosion resistance

Compatibility

Designed for use with 4-inch CPVC Schedule 80 piping systems in chemical processing, industrial plating, chilled water distribution, deionized water, and wastewater treatment installations where solvent-cemented socket fittings are specified.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with CPVC solvent cement procedures. Depressurize and drain the piping system completely before cutting or removing any existing fittings. Use only CPVC-rated solvent cement and primer appropriate for Schedule 80 fittings and follow manufacturer cure times before returning the line to service. Consult applicable local plumbing codes and ASTM F493 cementing guidelines when making solvent-welded joints.

Technical Specifications

• Fitting Type: 90-Degree Elbow
• Size: 4 inches
• Schedule: 80S
• End Connection: Female Socket x Female Socket
• Material: CPVC
• Material Specification: ASTM F439
• Applicable Standard: ANSI/NSF 14/61
• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Finish: Light Gray
• Weight: 3.44 pounds
• Packaging Quantity: 5 per carton
• Application: Chemical Processing, Chemical Drainage, Chilled Water Distribution, Deionized Water Line, Industrial Plating, Wastewater Treatment
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9806040
