Ipex 9801040 Cpvc Schedule 80 4 Inch Tee Fitting

Product Description

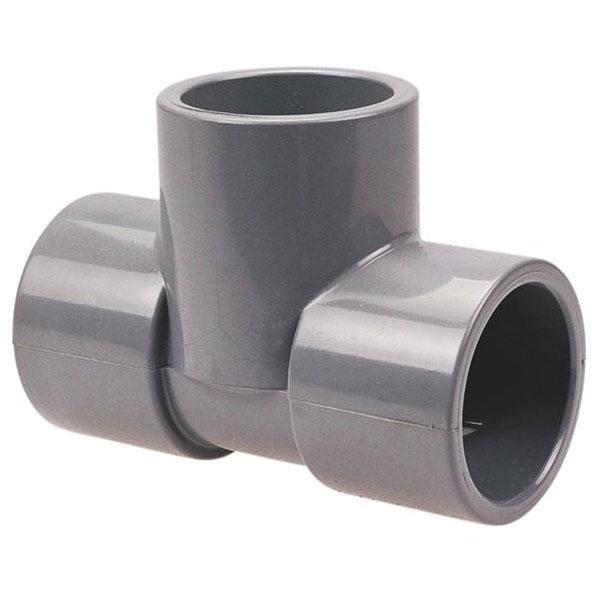

The IPEX 9801040 is a 4-inch CPVC Schedule 80 straight tee fitting with female socket connections on all three ends. Manufactured to ASTM F439 via injection molding, it is finished in light gray and rated for 2000 psi at 73 degrees F with a maximum service temperature of 210 degrees F. The fitting joins CPVC piping runs using solvent cement to produce a leak-free, maintenance-free joint. Licensed HVAC pipefitters, industrial plumbers, and process piping mechanics install this type of fitting in demanding fluid-handling systems where corrosion resistance and mechanical strength are required across a broad temperature range.

This fitting is suited for a wide range of commercial and industrial piping applications including chemical processing, industrial plating, chilled water distribution, deionized water lines, chemical drainage, and wastewater treatment systems. Its CPVC construction resists chemical attack and maintains structural integrity in both above-ground and underground installations, making it a reliable choice for process piping and industrial plant work where PVC or metal fittings fall short.

Key Features

• CPVC Schedule 80 construction rated to 2000 psi at 73 degrees F
• Maximum temperature rating of 210 degrees F for high-temperature fluid service
• Female socket x female socket x female socket end connections for solvent-cement joining
• Injection-molded to ASTM F439 for consistent wall thickness and dimensional accuracy
• Compliant with ANSI/NSF 14/61G for potable and process water applications
• Lightweight CPVC construction simplifies handling and installation compared to metal fittings

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 4-inch Schedule 80 CPVC piping systems joined by solvent cement in industrial and commercial process piping applications.

Installation Notes

Installation must be performed by a qualified plumber or pipefitter in accordance with applicable codes, including ASTM F439 solvent-cementing procedures and local plumbing codes. Depressurize and drain the piping system completely before cutting or removing any existing fittings. Use only CPVC-rated solvent cement and primer; do not substitute PVC-grade cement on Schedule 80 CPVC fittings. Allow full cure time per the cement manufacturer instructions before restoring system pressure.

Technical Specifications

• Material: CPVC
• Material Specification: ASTM F439
• Applicable Standard: ANSI/NSF 14/61G
• Schedule: 80
• Nominal Size: 4 inches
• End Connection: Female Socket x Female Socket x Female Socket
• Fitting Type: Straight Tee
• Pressure Rating: 2000 psi at 73 degrees F
• Temperature Rating: 210 degrees F
• Process: Injection Molded
• Finish: Light Gray
• Weight: 4.41 pounds
• Packaging Quantity: 5
• Application: Chemical Processing, Industrial Plating, Chilled Water Distribution, Deionized Water Line, Chemical Drainage, Wastewater Treatment
• Warranty: 1 Year Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 9801040
