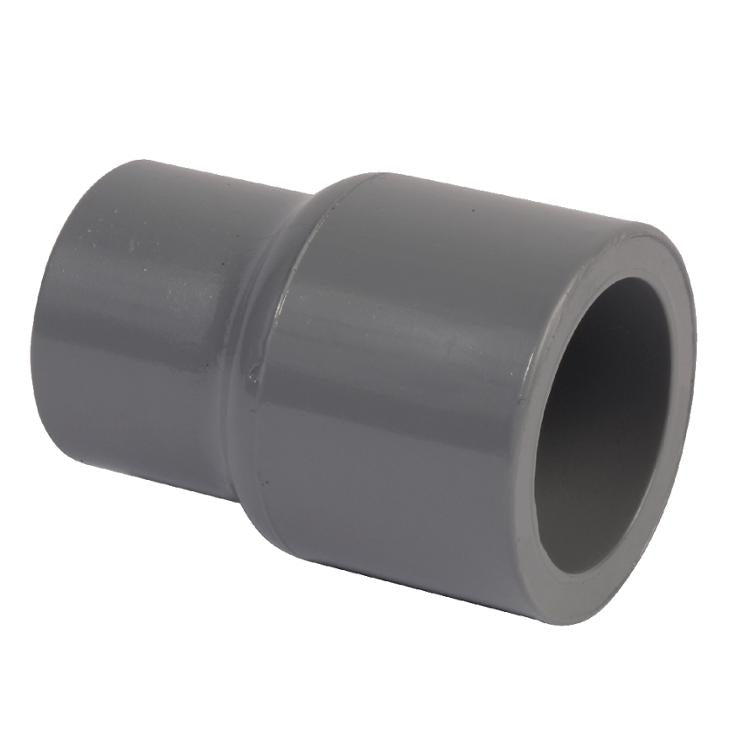

Ipex 59467 Cpvc Sch 80 Socket Coupling 2 in X 1 in

Product Description

The IPEX 59467 is a CPVC Schedule 80 socket-by-socket coupling designed for industrial and chemical process piping systems. It connects a 2-inch line to a 1-inch line using solvent-cement socket joints on both ends. Rated to a maximum service temperature of 200 degrees F under pressure, with occasional exposure to up to 212 degrees F, this fitting handles demanding thermal and chemical conditions. A design stress rating of 2,000 psi at 73 degrees F confirms suitability for pressure-rated process lines. Licensed plumbers and industrial pipefitters install this fitting as part of CPVC Schedule 80 systems used where metal piping is being replaced or avoided.

This coupling is part of the IPEX Xirtec CPVC system, a complete pipe, valves, and fittings package engineered and manufactured to consistent dimensional and performance standards. It is suited for applications involving acids, alcohols, salts, and halogens in chemical process and industrial environments. The CPVC construction resists oxidation, photodegradation, and creep stress, making it a practical alternative to carbon steel and exotic metal piping in corrosive service conditions. Typical installations include chemical feed lines, process loops, and industrial fluid handling systems.

Key Features

• Maximum service temperature of 200 degrees F under pressure, with occasional tolerance to 212 degrees F
• Design stress of 2,000 psi at 73 degrees F for pressure-rated process applications
• Socket-by-socket ends accept standard solvent cement for a reliable, leak-free joint
• CPVC material resists rust, pitting, scaling, and corrosion on interior and exterior surfaces
• Compatible with acids, alcohols, salts, and halogens common in chemical processing
• Schedule 80 wall thickness provides added pressure capacity compared to Schedule 40

Compatibility

Designed for use within CPVC Schedule 80 socket-joint piping systems in chemical process and industrial fluid handling applications. For use with solvent-cement compatible CPVC pipe and fittings meeting Schedule 80 dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber or qualified industrial pipefitter following applicable plumbing and process piping codes, including ASTM and ASME B31.3 guidelines where required. Shut down and depressurize the system completely before cutting into an existing line. Use a CPVC-rated solvent cement and primer appropriate for Schedule 80 fittings, and allow full cure time before restoring system pressure. Do not use this fitting with pipe schedules or materials outside its rated compatibility.

Technical Specifications

• Material: CPVC (Chlorinated Polyvinyl Chloride)
• Schedule: Schedule 80
• Connection Type: Socket x Socket (solvent cement)
• Inlet Size: 2 inches
• Outlet Size: 1 inch
• Maximum Service Temperature: 200 degrees F (93 degrees C) under pressure
• Occasional Exposure Limit: 212 degrees F (100 degrees C)
• Design Stress: 2,000 psi at 73 degrees F (23 degrees C)

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 59467
