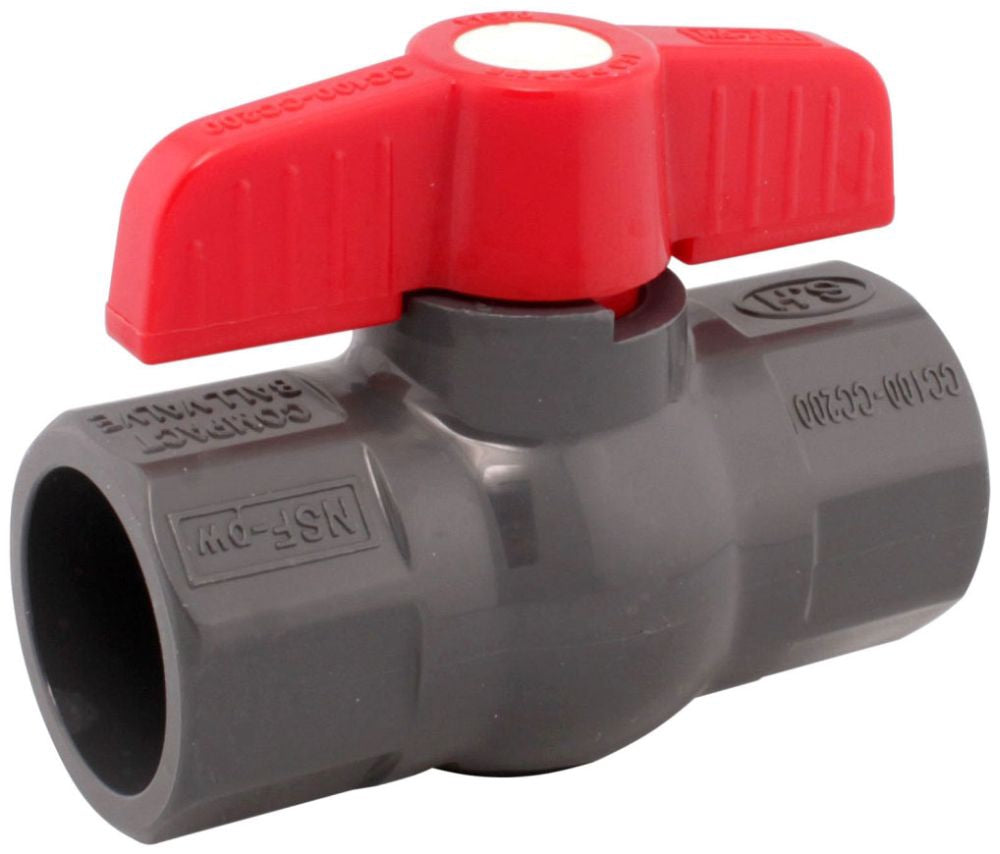

Ipex 52007 Pvc Ball Valve 1 Inch Socket X Socket

Product Description

The IPEX 52007 is a 1-inch PVC ball valve configured with socket x socket end connections, designed for manual shutoff and flow control in plumbing, irrigation, and industrial fluid systems. The valve body is constructed from PVC for corrosion resistance in chemical and water service applications. PTFE seats provide low-friction operation and chemical compatibility, while EPDM seals deliver reliable elastomeric sealing across a range of fluid temperatures. Weighing 0.52 pounds, this valve is a practical choice for residential and light commercial installations where a lightweight, non-metallic shutoff is required. Licensed plumbers and pipefitters are the typical installers.

This valve is suited for cold and ambient-temperature water lines, irrigation systems, pool and spa plumbing, and chemical distribution lines where PVC piping is specified. The socket x socket configuration accepts solvent-cement connections on both ends, making it compatible with standard Schedule 40 and Schedule 80 PVC pipe in 1-inch nominal size. It is commonly installed in residential service lines, commercial irrigation manifolds, and light industrial process piping where corrosion resistance and chemical compatibility are priorities.

Key Features

• PVC body construction resists corrosion and chemical attack in water and compatible fluid service
• Socket x socket end connections accept standard 1-inch PVC pipe with solvent cement
• PTFE seats provide low-friction ball operation and broad chemical compatibility
• EPDM seals deliver reliable elastomeric sealing for water and general-purpose fluid service
• Lightweight at 0.52 pounds, suitable for overhead or confined-space installations

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1-inch PVC piping systems using socket-end connections in plumbing, irrigation, and pool applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or local plumbing codes. Shut off the water supply and depressurize the line before cutting in or replacing the valve. Use approved PVC solvent cement and primer on socket connections, allowing full cure time before pressurizing the system. Do not use this valve with fluids, temperatures, or pressures outside the manufacturer-rated range for PVC ball valves.

Technical Specifications

• Material: PVC
• Size: 1 inch
• End Connections: Socket x Socket
• Seat Material: PTFE
• Seal Material: EPDM
• Weight: 0.52 pounds

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 52007
