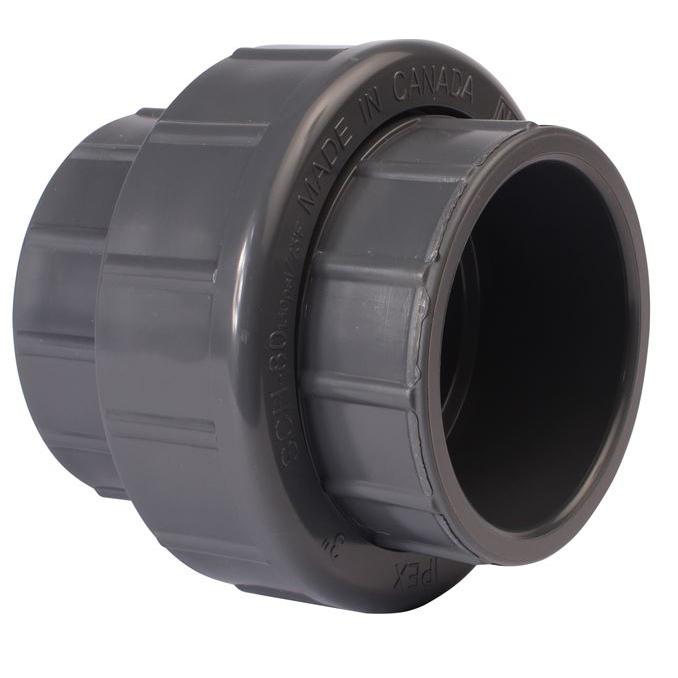

Ipex 36835 Pvc Schedule 80 Socket Union 1/2 Inch

Product Description

The IPEX 36835 is a 1/2-inch PVC Schedule 80 socket union engineered for industrial and chemical process piping systems. It provides a removable, leak-resistant connection point in pressure-rated PVC lines, allowing sections of pipe to be disconnected without cutting. Built to Schedule 80 wall thickness, this union handles higher pressures than Schedule 40 alternatives and maintains dimensional consistency with other IPEX Xirtec PVC system components. The PVC construction resists rust, pitting, scale, and corrosion on both interior and exterior surfaces, keeping flow paths smooth. Maximum service temperature is 140 degrees F in pressure service and 180 degrees F for intermittent gravity flow.

This socket union is suited for chemical processing plants, industrial fluid handling, water treatment, and plumbing systems where corrosion resistance and chemical compatibility are required. The socket-style ends accept standard 1/2-inch Schedule 80 PVC pipe with solvent cement. It is listed with the National Sanitation Foundation (NSF) and CSA International for use with potable water, extending its suitability to commercial and industrial water distribution applications. It is part of the IPEX Xirtec PVC system, a single-manufacturer pipe, valves, and fittings package designed to eliminate dimensional and performance inconsistencies that arise when mixing components from multiple suppliers.

Key Features

• Schedule 80 PVC construction rated for higher working pressures than Schedule 40
• Socket union design allows in-line disconnection without cutting pipe
• Resistant to rust, pitting, scale, and corrosion on interior and exterior walls
• Chemical resistance covers most acids, alcohols, alkalis, salt solutions, and halogens
• Max pressure service temperature of 140 degrees F; intermittent gravity flow rated to 180 degrees F
• NSF and CSA International listed for potable water service

Compatibility

Designed for use within the IPEX Xirtec PVC Schedule 80 pipe, valves, and fittings system. Accepts standard 1/2-inch Schedule 80 PVC pipe with solvent cement connection at both socket ends. Dimensional standards align with other IPEX Xirtec PVC system components to ensure consistent fit throughout the piping assembly.

Installation Notes

Installation is typically performed by licensed plumbers or industrial pipefitters following applicable IPC or local plumbing code requirements. Depressurize and drain the line completely before disassembling or installing any union fitting. Use a PVC-rated solvent cement and primer appropriate for Schedule 80 fittings; allow full cure time before returning the line to service. Do not exceed the rated service temperature or pressure for this fitting size and material.

Technical Specifications

• Pipe Size: 1/2 inch
• Schedule: Schedule 80
• Material: PVC
• Connection Type: Socket (solvent cement)
• Max Service Temperature (Pressure): 140 degrees F (60 degrees C)
• Max Service Temperature (Intermittent Gravity Flow): 180 degrees F (82 degrees C)
• Chemical Resistance: Most acids, alcohols, alkalis, salt solutions, halogens
• Certifications: NSF listed, CSA International listed

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 36835
