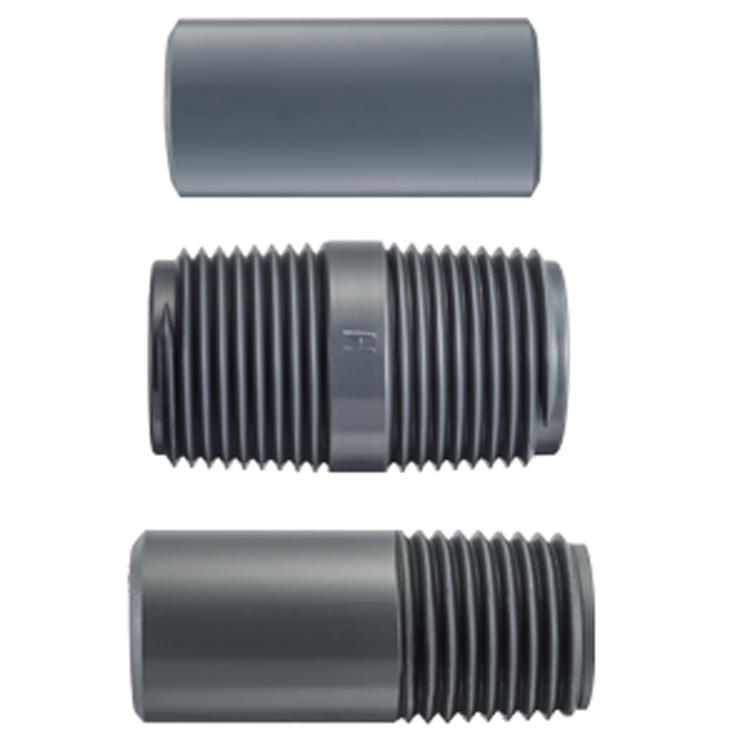

Ipex 36441 Pvc Schedule 80 Close Nipple 2 Inches

Product Description

The IPEX 36441 is a 2-inch Schedule 80 PVC close nipple with male threaded connections on both ends. Injection molded from PVC conforming to ASTM D1784, D1785, and D2467, it delivers reliable pressure handling in potable water and chemical service applications. The close configuration means the overall length equals the thread engagement length, making it suited for tight-clearance installations. The gray finish and smooth interior walls reduce pressure loss compared to conventional metal fittings. A temperature rating of 140 degrees F covers standard residential and light commercial service conditions. Licensed plumbers and pipefitters install this fitting where a short threaded connector is needed between fittings, valves, or equipment ports.

This nipple is intended for potable water systems and other PVC-compatible piping installations requiring Schedule 80 pressure ratings. The close pattern is commonly used in manifold assemblies, pump connections, and valve clusters where space between components is limited. NSF compliance supports use in drinking water applications. The 25-piece inner pack quantity suits both single-job use and stocking for recurring service work.

Key Features

• Schedule 80 wall thickness for higher pressure handling versus Schedule 40
• Male threaded x male threaded end connections for direct fitting-to-fitting assembly
• PVC construction meets ASTM D1784, D1785, and D2467 material specifications
• NSF listed for potable water service
• Smooth interior walls reduce pressure drop compared to metal threaded nipples
• Lifetime limited warranty

Compatibility

Designed as an OEM-style replacement or new-installation component for Schedule 80 PVC piping systems using 2-inch NPT threaded connections in potable water and chemical service lines.

Installation Notes

Installation should be performed by a licensed plumber following applicable IPC or local plumbing code requirements. Shut off the water supply and depressurize the line before threading or unthreading any fitting. Apply thread sealant rated for PVC and potable water use. Do not overtighten threaded PVC fittings, as PVC threads are susceptible to cracking under excessive torque.

Technical Specifications

• Fitting Type: Close Nipple
• Size: 2 inches
• Overall Length: 2 inches
• Schedule: 80
• End Connection: Male Threaded x Male Threaded
• Material: PVC
• Material Specification: ASTM D1784 / D1785 / D2467
• Process: Injection Molded
• Finish: Gray
• Temperature Rating: 140 degrees F
• Applicable Standard: NSF
• Application: Potable Water System
• Packaging Quantity: 25 per inner pack
• Warranty: Lifetime Limited

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 36441
