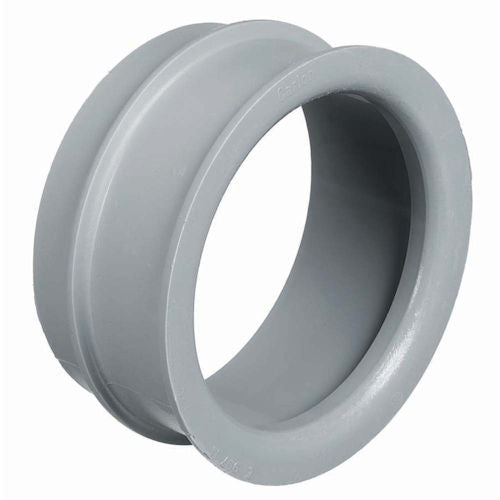

Ipex 200pbe Pvc Sch40 Conduit End Bell 2 Inch

Product Description

The IPEX 200pbe is a Schedule 40 PVC conduit end bell sized for 2-inch trade size conduit. End bells are installed at the entry and exit points of conduit runs where conductors transition into enclosures, panels, or equipment. The flared bell mouth protects wire insulation from abrasion during pull-through and helps guide conductors without nicking or cutting the jacket. This fitting is made from PVC and is suited for electrical raceway installations in residential, commercial, and light industrial applications. Licensed electricians and electrical contractors install this fitting as a standard part of conduit termination work.

The 200pbe is used at conduit terminations where a smooth, protected wire entry point is required. Typical applications include service entrances, panel feeders, underground conduit stub-ups, and any conduit run where conductors must be protected at the point of entry. The round profile and 2-inch trade size match standard Schedule 40 PVC conduit fittings used throughout electrical raceway systems.

Key Features

• PVC construction resists moisture, corrosion, and common chemicals found in electrical installations
• Schedule 40 rated for use with standard Sch40 PVC conduit systems
• 2-inch trade size fits standard 2-inch PVC conduit runs
• Flared bell mouth profile reduces insulation abrasion during wire pulls
• Round type profile for straightforward conduit termination

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-inch Schedule 40 PVC electrical conduit systems.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for conduit raceway systems. De-energize all circuits and verify power is off before pulling conductors through any conduit termination. The end bell should be seated securely at the conduit opening before wire pull begins. Do not use with conduit sizes or schedules other than those specified for this fitting.

Technical Specifications

• Material: PVC
• Trade Size: 2 inches
• Type: Round
• Conduit Schedule: Schedule 40

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 200pbe
