Ipex 200p4090d36rsch40elb Pvc Sch40 Conduit 90 Elbow 2in

Product Description

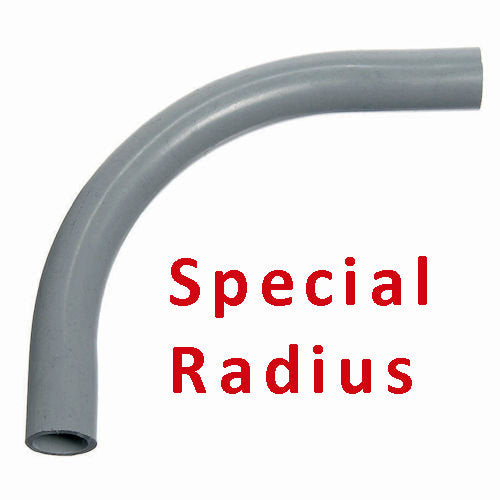

The IPEX 200p4090d36rsch40elb is a 2-inch Schedule 40 PVC conduit 90-degree elbow with a 36-inch sweep radius and plain ends. It is designed to change the direction of a conduit run by 90 degrees while maintaining a wide, gradual bend that allows wire and cable to be pulled through with reduced friction. The plain-end configuration accepts solvent-weld connections. This fitting is suited for electrical conduit installations in commercial, industrial, and residential applications where a long-radius sweep is required to meet code or to ease wire pulling.

This elbow is used in underground, direct-burial, and above-ground electrical conduit systems where Schedule 40 PVC is specified. The 36-inch radius is a long-sweep design, making it appropriate for runs carrying larger-gauge conductors or multiple conductors where a tight bend would increase pulling tension beyond acceptable limits. Electricians and electrical contractors install this fitting as part of a complete PVC conduit system.

Key Features

• 2-inch trade size Schedule 40 PVC construction
• 90-degree sweep with a 36-inch radius for reduced wire-pull tension
• Plain-end design for solvent-weld installation
• Schedule 40 wall thickness for standard conduit system compatibility

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-inch Schedule 40 PVC electrical conduit systems.

Installation Notes

Licensed electricians install PVC conduit fittings in accordance with the National Electrical Code (NEC). De-energize all circuits in the work area before beginning conduit installation. Plain-end fittings require PVC conduit solvent cement applied to both mating surfaces for a secure, watertight bond. Allow adequate cure time per the cement manufacturer instructions before pulling wire through the assembly.

Technical Specifications

• Trade Size: 2 inches
• Schedule: Schedule 40
• Material: PVC
• Bend Angle: 90 degrees
• Sweep Radius: 36 inches
• End Type: Plain End
• UPC: 98006006718

Standard Information

• Brand: IPEX
• Manufacturer Part Number: 200p4090d36rsch40elb
