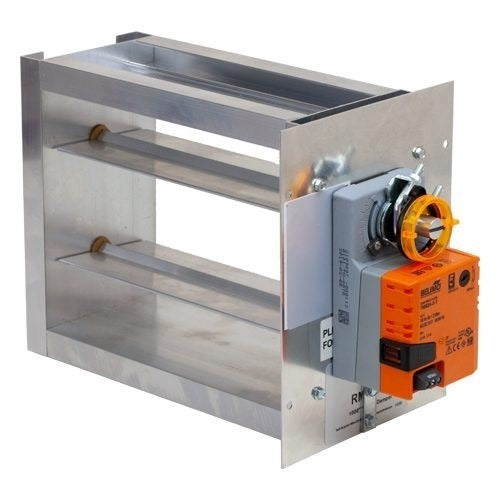

Io Hvac Controls RM-1408-BM Rectangular Zone Damper 14x8

Product Description

The IO HVAC CONTROLS RM-1408-BM is a rectangular zone damper designed for use in residential and light commercial zoned HVAC duct systems. It features a bottom-mount configuration and is equipped with a 3-wire Belimo actuator with a 35-second drive time, allowing for controlled, motorized airflow regulation. The damper body measures 14 inches wide by 8 inches deep, with an overall unit height of 17 inches. HVAC technicians install this damper in supply duct runs as part of a multi-zone system controlled by a zone control panel or thermostat-driven panel board.

This damper is suited for rectangular duct applications in forced-air zoning systems where independent room or zone temperature control is required. The bottom-mount actuator orientation makes it compatible with installations where access from the underside of the duct is preferred or required. It is typically installed by licensed HVAC technicians during new construction or retrofit zoning projects in residential and small commercial buildings.

Key Features

• Rectangular damper body sized at 14 inches by 8 inches for direct duct fitment
• Bottom-mount actuator position for installations requiring underside access
• Belimo actuator with 35-second drive time for smooth, reliable blade movement
• 3-wire actuator wiring configuration compatible with standard zone control panels
• Overall unit dimensions: 14 inches wide, 17 inches tall, 8 inches deep

Compatibility

Designed as an OEM-style replacement or new-installation zone damper for rectangular duct zoning systems requiring a 14-inch by 8-inch opening with a bottom-mount 3-wire actuator.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the air handler and zone control panel before beginning work. The actuator wiring must be connected according to the zone control board manufacturer's wiring diagram. Verify duct dimensions and actuator mounting clearance before securing the damper in place.
